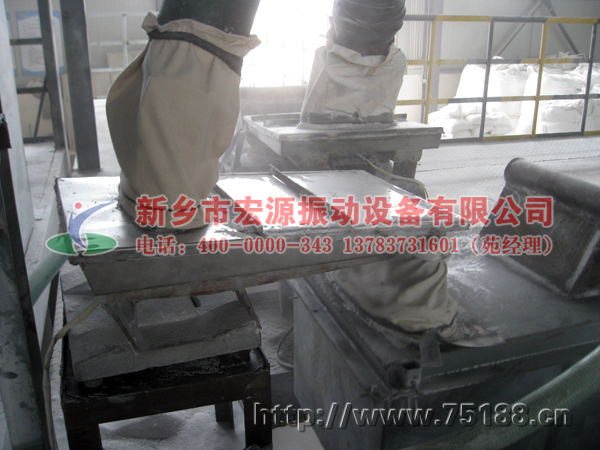

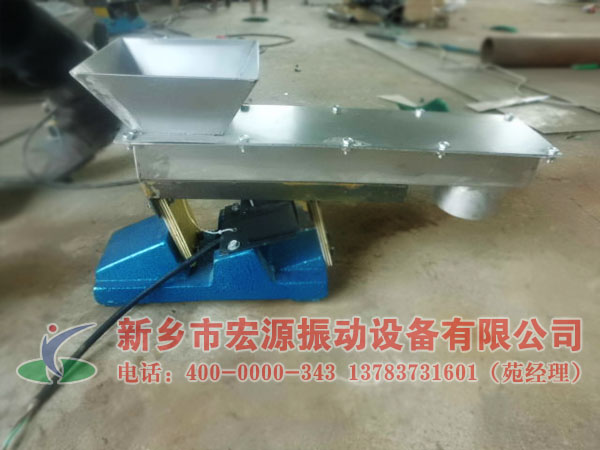

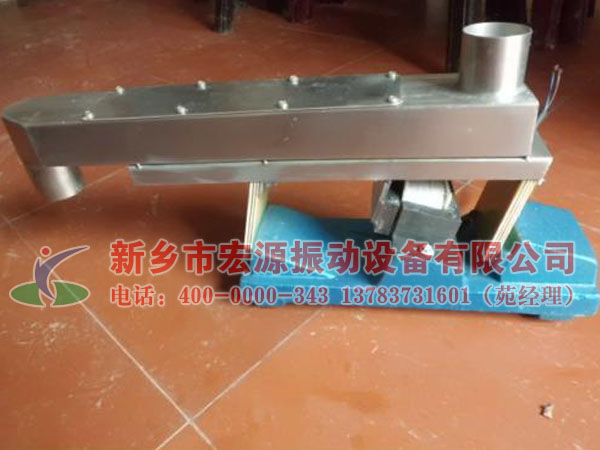

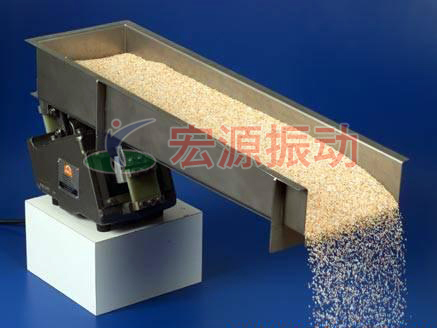

座式電磁振動給料機(喂料機)廣泛應用于冶金、礦山、煤炭、建材、化工、電力、糧食、機械等行業，可將顆粒狀、粉狀物料均勻、連續、定量地送至受料裝置。特別適用于自動配料、定量包裝、生產流程自動化、給料精度要求高的場合。給料機(喂料機)結構簡單，調試方便。安裝方式可分為座式安裝和懸掛式安裝。正常給料時可下傾10°安裝，對粘性或含水量較高的物料或細粉料可下傾15°安裝使用。給料機(喂料機)選型設計時應考慮設置溜咀及閘門，具體配置可參照GZV系列及GZ系列電磁振動給料機(喂料機)的配置方案，以保證振幅和給料量的穩定。
   A type of electromagnetic vibrating feeder is widely used in metallurgy, mining, coal, building materials, chemical industry, electric power, food, machinery and so on, granular, powdery materials can be uniform, continuous, sent to quantitatively by the device.Especially suitable for automatic batching, quantitative packaging, production process automation, feeding requiring high precision.Feeder simple structure and convenient debug.Installation can be divided into a type installation and hanging installation.Normal feeding can install downdip 10 °, the viscous or high water content material or powder material downdip 15 ° install and use.Feeder type selection design should be considered when setting sliding nozzle and the gate, you may refer to the specific configuration GZV series and GZ series electromagnetic vibrating feeder  configuration scheme, to ensure the stability of amplitude and quantificationally.

GZ系列電磁振動給料機工作原理

　　電磁振動給料機的激振器電磁線圈的電流是經過單相半波整流的，當線圈接通后在正半周內有電流通過，銜鐵與鐵芯之間便產生了一脈沖電磁力互相吸引，這時槽體向后運動，激振器的主彈簧發生變形儲存了一定的勢能，在負半周線圈中無電流通過，電磁力消失，主彈簧釋放能量，使銜鐵和鐵芯朝反方向離槽體向前運動，于是電磁振動給料機以交流電源的頻率作每分鐘3000次的往復振動，由于槽體的底平面與激振力作用線有一定的夾角，因此槽體中的物料沿拋物線的軌跡連續不斷地向前運動。調節整流電壓的高低，即可控制電磁振動給料機的送料量。給料機采用可控硅整流供電。改變可控硅的導通角，即可控制輸出電壓的高低。根據使用條件，可取不同信號來控制可控硅導通角的大小以達到自動定量送料的目的。

Working principles
      Electromagnetic vibrating feeder of the vibrator of electromagnetic coil current is a single-phase half-wave rectifier, when the coil after connect in the positive half cycle with an electric current passes through, between armature and core to produce a pulse electromagnetic force to attract each other, when the tub backwards movement, the main spring vibrator distortion stored potential energy, no current through in the negative half cycle coil, electromagnetic force, the main spring release energy, make the armature and core in the opposite direction from the tub forward movement, so the electromagnetic vibrating feeder with the frequency of the ac power source 3000 beats per minute of reciprocating vibration, due to the tub bottom plane and the excitation force corresponding to a certain Angle, so material along a parabolic trajectory in tub continuously move forward.Adjust the height of the rectifier voltage, can control of electromagnetic vibrating feeder to send shoes.Feeder with silicon controlled rectifier power supply.Change the conduction Angle of silicon controlled rectifier to control the output voltage of the high and low.According to the conditions of use, recommend different signal to control the size of the thyristor conduction Angle in order to achieve the purpose of automatic quantitative feeding.

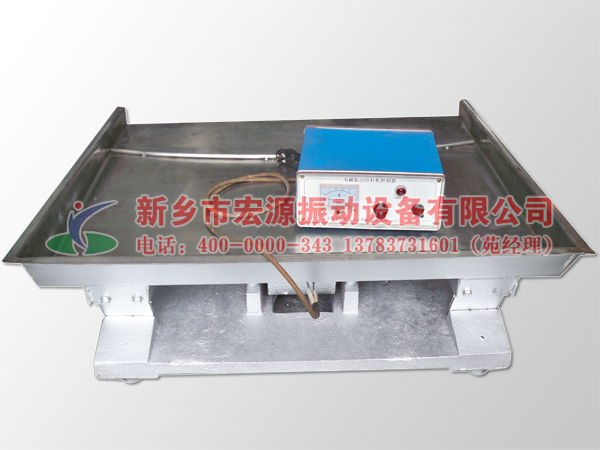

電磁振動給料機配套控制箱

Form a complete set of control box

    配套控制箱具有手動控制和自動控制兩種功能。自動控制信號為0～5V或～20mA。控制箱基本電路采用先進的移相觸發器控制固態繼電器作為主回路整流控制原件，可靠性好、壽命長，是一種新型控制電路。控制箱分為掛式與臺式兩種，訂貨時請注明。
    Form a complete set of control box with manual control and automatic control two functions.Automatic control signal is 0 ~ 5 v or ~ 20 ma.Basic circuits of control box is the advanced phase shift trigger control of solid state relay as the main circuit of the original rectifier control, good reliability, long service life, is a new type of control circuit.Control box is divided into hanging and table two, please specify when ordering.

座式電磁振動給料機技術參數表

Parameters

類型	型號	生產率(t/h)		給料粒度mm	雙振幅mm	供電電壓(V)	電流(A)		有效功率(Kw)	配套控制箱信號
		水平	-10度				工作電流	表示電流
基本型	GZ1	5	7	50	1.75	220	1.34	1	0.06	XKZ-5G2
	GZ2	10	14	50			3.0	2.3	0.15
	GZ3	25	35	75			4.58	3.8	0.2
	GZ4	50	70	100			8.4	7	0.45	XKZ-20G2
	GZ5	100	140	150			12.7	10.6	0.65
	GZ6	150	210	200	1.5	380	16.4	13.3	1.2	XKZ-20G3
	GZ7	250	350	250			24.6	20	3
	GZ8	400	560	300			39.4	32	4
	GZ9	600	840	350			47.6	38.6	5.5	XKZ-200G3
	GZ10	750	1050	500			39.4*2	32*2	4*2	XKZS-200G3
	GZ11	1000	1400	500			47.6*2	38.6*2	5.5*2
上振型	GZ3S	25	35	75	1.75	220	4.58	3.8	0.2	XKZ-5G2
	GZ4S	50	70	100			8.4	7	0.45	XKZ-20G2
	GZ5S	100	140	150			12.7	10.6	0.65
	GZ6S	150	210	200	1.5	380	16.4	13.3	1.5	XKZ-20G3
	GZ7S	250	350	250			24.6	20	3	XKZ-100G3
	GZ8S	400	560	300			39.4	32	4
封閉型	GZ1F	4	5.6	40	1.75	220	1.34	1	0.06	XKZ-5G2
	GZ2F	8	11.2	40			3.0	2.3	0.15
	GZ3F	20	28	60			4.58	3.8	0.2
	GZ4F	40	56	60			8.4	7	0.45	XKZ-20G2
	GZ5F	80	112	80			12.7	10.6	0.65
	GZ6F	120	168	80	1.5	380	16.4	13.3	1.5	XKZ-20G3
輕槽型	GZ5Q	100	140	200	1.5	220	12.7	10.6	0.65	XKZ-20G2
	GZ6Q	150	210	250		380	16.4	13.3	1.5	XKZ-20G3
	GZ7Q	250	350	300			24.6	20	3	XKZ-100G3
	GZ8Q	400	560	350			39.4	32	4
平槽型	GZ5P	50	70	100	1.5	220	12.7	10.6	0.65	XKZ-20G2
	GZ6P	75	105			380	16.4	13.3	1.5	XKZ-20G3
	GZ7P	158	175				24.6	20	3	XKZ-100G3
寬槽型	GZ5K1		200	100	1.5	220	12.7*2	10.6*2	0.65*2	XKZ-20G2
	GZ5K2		240
	GZ5K3		270
	GZ5K4		300
圓管型	GZ1G	2		50	1.75	220	1.34	1	0.06	XKZ-5G2
	GZ2G	4		50			3.0	2.3	0.15	XKZ-5G2
	GZ3G	10		60			4.58	3.8	0.2	XKZ-5G2
	GZ4G	20		70			8.4	7	0.45	XKZ-20G2
	GZ5G	40		80			12.7	10.6	0.65	XKZ-20G2
特大型	GZ11-T		1000物料為煤比重0.85	300	1.5	380	47.6*2	38.6*2	5.5*2	SZK.00
