ZSW系列振動給料機簡介

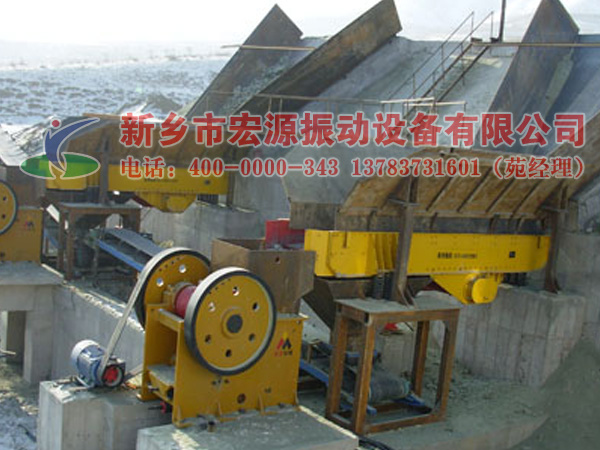

    ZSW系列振動給料機也稱振動喂料機，用于粗破碎機前大塊物料的均勻供給。同時可以利用棒條或板網篩面的作用，達到預篩分的功能，從而除掉泥土和細粒物料。該設備已廣泛應用于冶金、煤礦、選礦、建材、化工、磨料等行業的破碎、篩分聯合設備作業中。

Product overview
   ZSW series vibrating feeder is also called vibration feeding machine, used for coarse crusher before large materials supply of uniform.At the same time it can make use of the rods or plate mesh surface effect, achieve the function of the preliminary screening, so as to get rid of dirt and fine grained material.The equipment has been widely used in metallurgy, coal mining, ore dressing, building materials, chemical, abrasive and other industries crushing, screening combination equipment operation.

ZSW系列振動給料機工作原理

Working principles

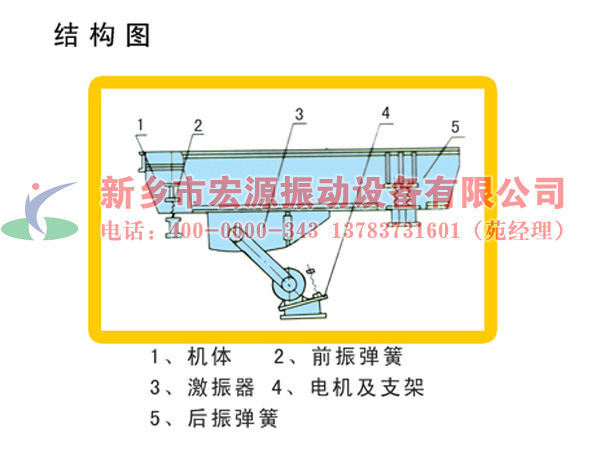

    ZSW型振動給料機主要由振動機架、彈簧、振動器、電機振動架及電機等組成。激振器是由二個特定位置的偏心軸以齒輪相嚙合組成，裝配時必須使兩齒輪按標記相嚙合，通過電機驅動，使兩偏心軸旋轉，從而產生巨大合成的直線激振力，使機體在支承彈簧上作強制振動，物料則以此振動為動力，在料槽上作滑動及拋擲運動，從而使物料前移而達到給料目的。當物料通過槽體上的篩條時，較小的料可通過篩條間隙而落下，可不經過下道的破碎工序，起了預篩分的效果。
    ZSW type vibrating feeder is mainly composed of vibration frame, spring, vibrator, motor frame and motor, etc.Vibrator is made up of two specific location of eccentric shaft in gear meshing, the assembly must make two gears mesh according to the tag phase, driven by motor, make the two eccentric shaft rotation, resulting in a huge synthesis of linear vibration force, make the body on the supporting spring for a forced vibration, the material is powered by vibration, on chute sliding and movement, throwing to make material feed forward and to achieve.When material through the sieve article on the tub, smaller article through sieve gap and fall, don't go through the way of crushing process, the effect of preliminary screening.

ZSW系列振動給料機性能特點

1. 結構簡單先進，喂料均勻，連續性能好，激振力可調；
2. 操作方便，可以隨時改變和控制流量；
3. 噪音低，耗電少，調節性能好，無沖料現象；
4. 若采用封閉式機身，可防粉塵污染
5. 振動平穩、工作可靠、壽命長。

Features
 1. Simple and advanced structure, feeding uniform,good and continuous performance, exciting force can be adjusted;
2. Easy to operate, can always change and control flow;
3. Low noise, less consumption, good regulation performance, no flow phenomenon;
4. If the enclosed body, can prevent dust pollution
5. Stable vibration, reliable operation, long service life.

ZSW系列振動給料機技術參數

Parameters

型號	最大進料粒度	處理能力（t/h）	偏心軸轉速（r.p.m）	電動機功率（KW）	安裝傾角（°）	機器重量（不含電機）（kg）	料槽尺寸	外形尺寸（長×寬×高）
ZSW-380×95	500	96-160	500-714	11	0	4082	3800×960	3882×2177×2068
ZSW-420×110	580	120-240	500-800	15	0	4740	4200×1100	4282×2400×2150
ZSW-490×96	500	120-240	500-800	15	0	5351	4900×960	4957×2277×2150
ZSW-190×110	630	120-280	500-800	15	0	5352	4900×1100	4950×2425×2031
ZSW-590×110	630	350	750	22	0	6130	5900×1100	6000×2500×2150
ZSW-600×130	750	400-560	500-800	22	0	7800	6000×1300	6082×2580×2083
