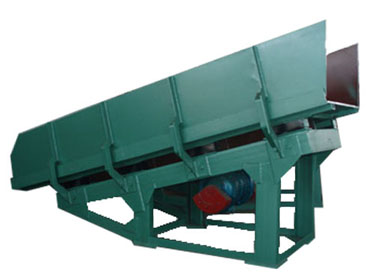

GZ電磁振動給料機
GZ系列電磁振動給料機產品概述
Product overview
GZ series electromagnetic vibrating feeder is widely used in mining, metallurgy, coal, building materials, chemical industry, electric power, food and other industries, used for the massive, granular and powdered materials from the storage bin or other storage device in the homogeneous continuous or quantitative to give in to the material equipment, is the sort of practice routine automation equipment, is divided into open and closed.We also can produce according to the motor vibration feeder, reciprocating feeder, vibration hopper, vibration and supporting the use of conveyor equipment.
GZ系列電磁振動給料機產品主要特點
Features
This series of electromagnetic vibration feeding machine has small volume, low noise, light weight, high working frequency, less power consumption, can be used for automatic control in the process to realize the automatic production process.Stepless adjustment of quantificationally, but under the condition of rated voltage, the amplitude of frequent starting and continuous operation, easy installation and maintenance.

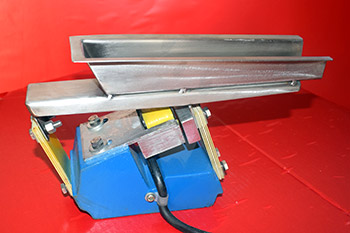

電磁振動給料機使用現場
Working site

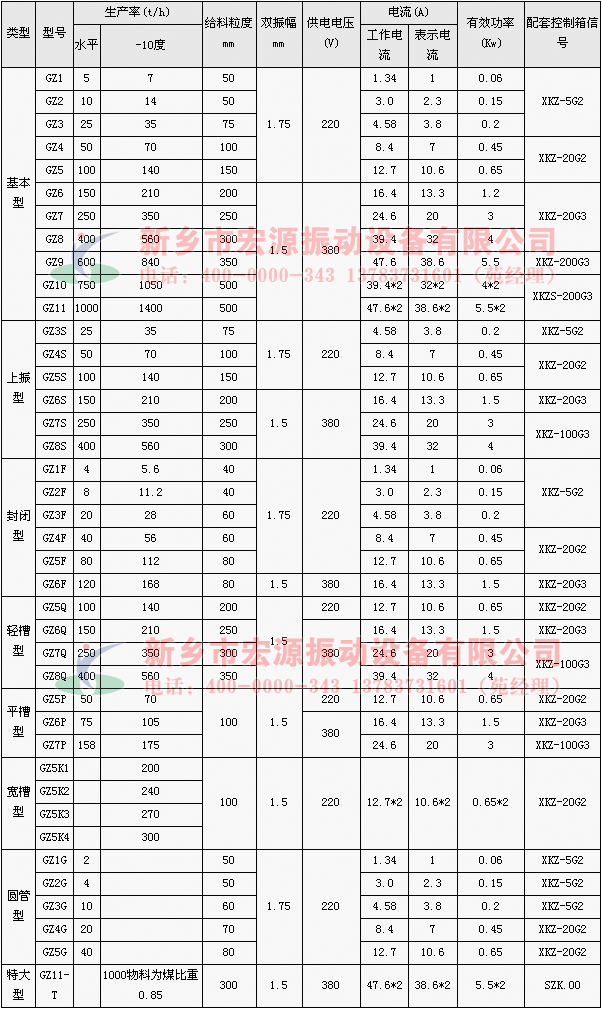

GZ系列電機振動給料機主要技術參數表
Parameters

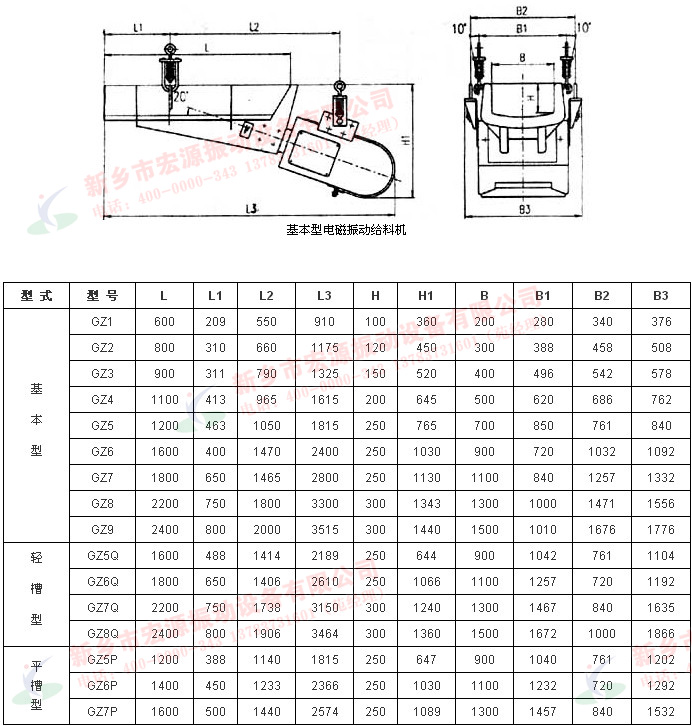

GZ型電磁振動給料機外形尺寸
Boundary dimensions
GZ型電磁振動給料機設備選型注意事項
Equipment selection considerations1.主機
1.The host
|
類型 |
生產率計算容量（t/m3） |
用途 |
|
基本型 |
1.6 |
無特殊要求的物料給料 |
|
上振型 |
1.6 |
配置空間不夠的情況下安裝使用，其它與基本型相同 |
|
封閉型 |
1.6 |
易碎顆粒、粉塵較大及揮發性物料給料 |
|
輕槽型 |
1.0 |
比重較小的輕物料給料 |
|
平槽型 |
安配煤條件給出 |
薄料層均勻給料 |
|
寬槽型 |
按配煤條件給出 |
主要用于選煤，亦可用于向篩分設備給料 |
實際容重大于或小于上述計算容重時，生產率按實際物料容重進行換算。
對于粒度小于1mm的物料，輸送速度下降，含水量大于10%的潮濕粘性物不能正常輸送。料層厚度超過規定上值，會妨礙正常給料，推薦料層厚度H=(1/3～1/4)槽高。
對有特殊要求、特殊規格的產品，我公司可專門設計制造。
The actual volume weight is greater than or less than the above to calculate the volume weight, productivity conversion according to the actual material density.
For material particle size less than 1 mm, conveying speed drops, moisture content is more than 10% of moisture goo can't normal delivery.Material thickness in excess of the prescribed value, will interfere with the normal feeding, recommend material thickness H = (1/3 ~ 1/4) slot is high.
To have special requirements, special specifications of products, our company can design and manufacture specialized.
2.配套控制箱：
2. The control box of form a complete set:
GZ系列電磁振動給料機配套控制箱具有手動控制和自動控制兩種功能。自動控制信號為0～5V或～20mA。控制箱基本電路采用先進的移相觸發器控制固態繼電器作為主回路整流控制原件，可靠性好、壽命長，是一種新型控制電路。控制箱分為掛式與臺式兩種，訂貨時請注明。
GZ series electromagnetic vibration feeding machine control box with manual control and automatic control of two functions.Automatic control signal is 0 ~ 5 v or ~ 20 ma.Basic circuits of control box is the advanced phase shift trigger control of solid state relay as the main circuit of the original rectifier control, good reliability, long service life, is a new type of control circuit.Control box is divided into hanging and table two, please specify when ordering.
我公司可根據用戶需要設計制造特殊型號規格的振動給料機。
我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準.
Our company can design and manufacture according to user needs special specifications of vibrating feeder.
My company for all technical data, reserve the right to modify the size, such as material object does not accord with the design, the material shall prevail
