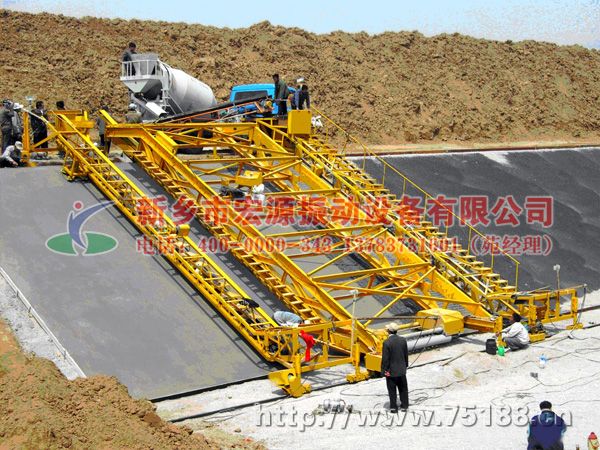

渠道襯砌機用于長距離、大斷面渠道的襯砌施工，可對混凝土襯砌進行送料、攤鋪、提漿、振實、整平。襯砌機由主機架、操作臺、鋪料小車、振動碾壓小車、平料螺旋、皮帶機等部分組成，具有混凝土布料、攤鋪、振搗、碾實、扎光、沿軌道自行等多種功能。襯砌機機架長度可根據襯砌坡面長度調整選用，機架高度采用電動調節，更換機架鉸接處的聯結螺栓可以調整坡比，適用于大面積襯砌作業。
    Channel lining machine is used for long distance, large cross-section of channel lining construction, feeding, paving, carry on concrete lining for plasma, vibrated, leveling.Lining machine is composed of main frame, work station, paved cart, vibration rolling cars, spiral, belt machine parts, such as a concrete materials, spreading and vibrating, rolled, calendering, along the orbit on its own and other functions.Lining machine frame length can be adjusted according to lining slope length is chosen, the use of electric height adjustment for the rack, replace the frame hinged point of joint bolt can adjust the slope ratio, applicable to large lining operations.

    襯砌機特點：
    1.一機多用，可進行混凝土襯砌施工，也可進行水泥土或沙礫料的攤鋪、整平、振實施工；
    2.提料、送料全程采用螺旋輸送器，效率高，不漏料，不跑漿，很好保持混凝土最初配合比；相對于皮帶輸送，故障率低,易操作；
    3.螺旋輸送器的螺旋葉采用65Mn鋼材料，耐磨，壽命長；
    4.整平輥將整平及振實融為一體，采用國際先進的超高頻內振動技術，提漿深度深；
    5.插入式振搗翅使振搗效果更佳，提漿效果更好，特別適合于纖維混凝土的施工。振搗翅采用高性能彈簧鋼，振動效果好，壽命長；
    6.液壓調節升降，方便省力；

Features
 1. Multi-usage, can undertake concrete lining construction, can also be used for soil or gravel material paving, leveling, boost the implementation of work;
2. The lifting and feed the whole USES the spiral conveyor, high efficiency, no leakage, no run pulp, well maintain original concrete mixture ratio;Relative to the belt conveyor, low fault rate and easy operation;
3. Screw conveyor of the spiral blade using 65 mn steel material, wear resistance, long service life;
4. Leveling roller leveling and compaction, adopt international advanced within uhf vibration technology, plasma depth deep;
5. Plug in vibrating wings make the vibrating effect is better, better pulp, particularly suitable for fiber reinforced concrete construction.Vibrating wings adopts high performance spring steel, vibration effect is good, long life;
6. Hydraulic adjust elevator, convenient save Labour;

    襯砌機工作視頻：
Working Flash

宏源科技免費咨詢電話：0373-2678028，手機：13783731601.
 Hongyuan vibration free consultation telephone: 0373-2678028, mobile: 13783731601.
