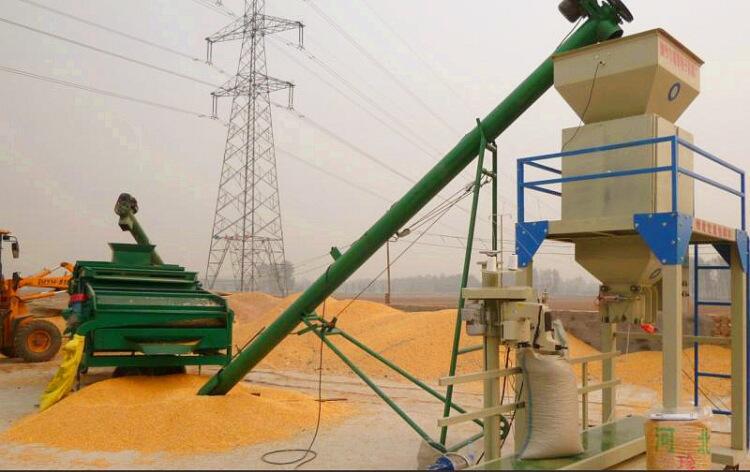

糧食定量包裝機特點

    DCS系列定量包裝機包裝秤是我公司自行研制開發的高科技機電一體化產品，采用了先進的儀表測量和PLC控制技術，使產品具有稱量精度高、包裝速度快、運行穩定、可靠性高、操作簡捷等特點，產品以技術起點高、產品質量優等優點受到廣大用戶的青睞。
Features
  DCS series quantitative packaging machine packaging scale is developed by our company can be high-tech electromechanical integration products, adopt advanced instrument measuring and PLC control technology, make the products with high precision weighing, packaging speed, stable operation, high reliability, simple operation etc., products with excellent technology, high starting point, product quality advantages favored by the masses of users.



糧食定量包裝機結構組成

    主要由物料進口、給料機構（閘門）、稱量斗、夾袋機構、機架、吸風口、氣動系統、傳感器、控制箱、輸送和縫包機構等組成。
Parts
     Mainly from the material, the feeding mechanism (gate), weighing hopper, folder bag institutions, frame, absorb, pneumatic systems, sensors, control box, transmission and FengBao institutions, etc.

糧食定量包裝機工作原理

    物料由給料機構（氣動閘門）加入稱量斗，控制器收到傳感器的重量信號后，按預先設定的程序值進行控制，開始時進行快速（快加、中加、慢加同時）給料；當重量≥（目標值－粗計量值）時，停止快加信號輸出，進入中速（中加、慢加同時）給料；當重量≥（目標值－精計量值）時，停止中加信號輸出，進入慢速（慢加）給料；當重量≥（目標值－過沖量值）時，停止慢加信號輸出，給料門完全關閉，定值稱量完成。夾袋信號輸入后，稱量斗卸料門自動開啟，當重量≤零位設定值時，稱量斗卸料門自動關閉，物料袋自動松開落入輸送帶上，被送到縫包機縫包之后進入下一工序，同時控制器進入下一控制循環。

Working principles
   Material  join the weighing hopper by feeding mechanism (pneumatic valve)， the controller receives the weight of sensor signal, according to preset procedure value control, fast at the beginning (fast plus, add, slow and at the same time) feeding;When the weight (target - coarse measurement value or higher), stop quickly add signal output, into the medium (add, slow and at the same time) feed;When the weight (target - fine measurement value or higher), stop adding signal output, into slow (slow) feeding;When weight (target - impulse value or higher), stop slowly add signal output, feeding door close fully, fixed value weighing.Clip bag after signal input, weighing hopper discharge door open, when the zero value or less weight, weighing hopper discharge door shut down automatically, automatically loosen falling into a conveyor belt and bag be sent to the sewing machine after FengBao into the next process, at the same time into the next control loop controller.

糧食定量包裝機適用范圍

    糧食、大米、種子、玉米、芝麻、肥料顆粒、橡膠顆粒、塑料顆粒、PP顆粒、PE顆粒、無機鹽、工業鹽、鋼鐵、煤炭、白砂糖、礦業、建材、建筑、港口、金屬顆粒、飼料顆粒、油脂、制糖、食品顆粒、化工、輕工等行業顆粒狀物料的定量包裝。（有腐蝕性的物料，包裝秤采用不銹鋼材料制成）
Applications

   Grain, rice, seeds, corn, sesame seed, fertilizer granules, rubber granules, plastic particles, PP particles, PE particles, inorganic salt, industrial salt, iron and steel, coal, sugar, mining, building materials, construction, ports, metal particles, feed particles, grease, sugar, food, grain, chemical industry, light industry and other granular material of quantitative packaging.(corrosive materials, packing controller adopts stainless steel)

糧食定量包裝機技術參數

型號規格： DCS－50系列
適用物料： 顆粒狀物料
額定稱量： 40～80kg
稱量速度： 360包/小時
顯示分辨率：10g
計量準確度：靜態≤±0.1%、動態≤±0.2%
供氣氣源： 氣壓：0.6MP、用氣量：0.5m3/h
供電電源：
包裝秤： AC220V/50HZ    AC380V/50HZ
總功率：  (2.2+0.25＋0.37)kw
安裝高度： 長×寬×高（3×1.3×3.3）m
總重量：≥650kg
溫度范圍： －10～40℃
相對濕度： ≤90%RH（無凝結水）
注：同時可根據用戶的要求重新設計。

Parameters
Specifications: DCS - 50 series
Applicable materials: granular materials
Rated weighing: 40 ~ 80 kg
Weighing speed: 360 packages/hour
Display resolution: 10 g
Accuracy of measuring: static plus or minus 0.1% or less, dynamic plus or minus 0.2% or less
Gas source: pressure: 0.6 MP, gas use: 0.5 m3 / h
Power supply:
Packing scale: AC220V / 50 hz AC380V / 50 hz
Total power: kw (2.2 + 0.25 + 0.25)
The installation height, length x width x high (3 * 1.3 * 1.3 m)
Total weight: 650 kg or more
Temperature range: - 10 ~ 40 ℃
Relative humidity: 90% RH or less (no water)
