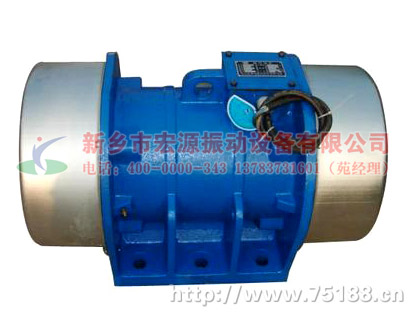

XVMA系列振動電機是我公司新近開發的新型振動電機產品，設計精巧，運行安全可靠，安裝維護方便，簡化結構、降低成本，使得振動篩對物料的處理量更大；激振力能在一定范圍內非常容易地進行無極調節，滿足各種作業需求；使用新型密封技術及進口密封件，大大提高了振動電機的防塵防潮能力，產品能在各種高塵高潮濕場所安全穩定運行；各項先進的設計及精密的制造過程，確保產品具有特長使用壽命。
    XVMA series vibration motor is that my company recently developed a new type of vibration motor products, exquisite design, safe and reliable running, convenient installation and maintenance, simplifying the structure, reduce costs, make the vibrating screen for material processing more;Vibration force can easily adjust the infinite within a certain scope, meet the demand of all kinds of homework;Using the new sealing technology and imported seal, greatly improving the vibration motor dust moistureproof ability, products can be in the safe and stable operation of all kinds of high dust damp places;All kinds of advanced design and precision manufacturing process, to ensure the service life of the product has special features.
     XVMA系列振動電機是在雙軸伸的轉子軸兩端各安裝一組可調偏心塊，利用偏心塊旋轉產生的離心力得到激振力。振動電機的激振力大、能耗小、噪聲低、壽命長。它使用于料倉、料斗、溜槽的倉壁振動，還是自同步直線振動篩、振動給料機、振動輸送機等各種振動機械的激振源，是冶金、礦山、煤炭、建材、化工等部門的理想設備，有廣泛的應用范圍。
     XVMA series vibration motor is in biaxial stretching at each end of the rotor shaft installed a set of adjustable eccentric block, using the centrifugal force produced by the rotation of eccentric block vibration force.Vibration motor vibration force is big, low energy consumption, low noise, long service life.It USES in the bunker, hopper, chute silo wall vibration, or self synchronous linear vibrating screen, vibrating feeder, vibrating conveyor, etc all kinds of mechanical vibration excitation source, is metallurgy, mining, coal, building materials, chemical industry and other departments of ideal equipment, has a wide application range.

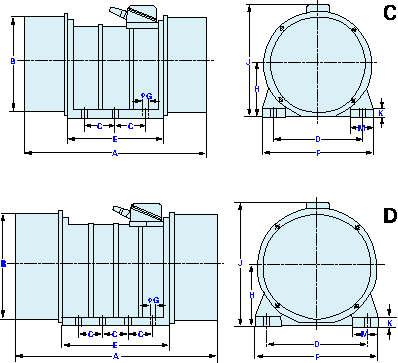

XVMA系列振動電機外形尺寸圖

Boundary dimensions

XVMA系列振動電機技術參數

Parameters

型號	振次r.p.m	最大激振力	功率	電流	功率因數	效率	起動電流倍數	重量	圖號	外型及安裝尺寸 (mm)											緊固螺栓
										A	B	C	D	E	F	G	H	J	K	M
		[N]	[kw]					[kg]
xvm0.7-2	2870	700	0.15	0.38	0.86	70	3.8	12	A	240	92	90	130	120	160	11	70	160	22	40	M10
xvm1.5-2		1500	0.15	0.38	0.86	70	3.8	16	A	240	92	90	130	120	160	11	70	160	22	40	M10
xvm2.5-2		2500	0.25	0.58	0.86	76	4.6	20	A	310	143	100	140	130	170	13	80	180	26	45	M12
xvm 5-2		5000	0.40	1.01	0.83	72	4.8	32	A	342	173	120	150	160	200	18	100	240	36	54	M16
xvm 8-2		8000	0.75	1.76	0.88	74	6.3	48	B	390	192	140	170	210	220	18	110	270	20	60	M16
xvm 16-2		16000	1.10	2.80	0.86	70	6.1	76	B	466	250	180	235	230	285	19	140	315	22	75	M18
xvm 25-2		25000	1.80	4.30	0.90	71	5.6	110	B	560	285	224	270	274	330	21	157	340	24	80	M20
xvm 32-2		32000	2.20	5.10	0.90	73	6.3	168	B	600	320	180	350	270	420	32	176	390	26	100	M30
xvm 50-2		50000	3.50	8.18	0.89	73	7.9	216	B	680	373	155	390	310	470	34	198	420	30	110	M33
xvm 1.2-4	1460	1200	0.07	0.30	0.61	60	3.0	16	A	240	92	90	130	120	160	11	70	160	22	40	M10
xvm 2.5-4		2500	0.10	0.32	0.69	66	4.6	24	A	310	143	100	140	130	170	13	80	180	26	45	M12
xvm 5-4		5000	0.20	0.65	0.67	70	5.4	42	A	378	173	120	150	160	200	18	100	240	36	54	M16
xvm 8-4		8000	0.40	1.14	0.72	73	6.2	58	B	410	192	140	170	210	220	18	110	270	20	60	M16
xvm 16-4		16000	0.75	2.08	0.74	74	6.6	82	B	466	250	180	235	230	285	19	140	315	22	75	M18
xvm 32-4		32000	2.00	4.73	0.84	77	6.1	142	B	560	285	224	270	274	330	21	157	340	24	80	M20
xvm 50-4		5000	2.50	6.25	0.83	73	6.1	180	B	600	320	180	350	270	420	32	176	390	26	100	M30
xvm 75-4		75000	4.00	10.14	0.82	74	6.6	245	B	680	373	155	390	310	470	34	198	420	30	110	M33
xvm100-4		100000	6.50	16.88	0.82	71	7.6	465	C	860	420	140	440	420	520	34	240	490	35	120	M33
xvm 120-4		120000	8.00	19.40	0.83	76	7.5	508	C	890	420	140	440	420	520	34	240	490	35	120	M33
xvm 140-4		140000	10.00	24.16	0.82	75	7.1	566	D	930	480	118	460	490	550	38	260	520	35	120	M36
xvm 160-4		160000	10.00	24.16	0.82	75	7.1	619	D	930	480	118	460	490	550	38	260	520	35	120	M36
xvm 2.5-6	980	2500	0.20	0.70	0.60	71	4.3	42	A	378	173	120	150	160	200	18	100	240	36	54	M16
xvm 5-6		5000	0.40	1.23	0.67	74	4.1	58	B	438	192	140	170	210	220	18	110	270	20	60	M16
xvm 10-6		10000	0.75	2.18	0.67	78	5.8	82	B	466	250	180	235	230	285	19	140	315	22	75	M18
xvm 16-6		16000	1.10	3.03	0.71	78	5.6	102	B	540	250	180	235	230	285	19	140	315	22	75	M18
xvm 20-6		20000	1.50	4.10	0.71	81	6.6	130	B	560	285	224	270	274	330	21	157	340	24	80	M20
xvm 30-6		30000	2.20	6.10	0.69	80	6.1	180	B	600	320	180	350	270	420	32	176	390	26	100	M30
xvm 40-6		40000	3.00	7.40	0.73	84	5.9	235	B	660	320	180	350	270	420	32	176	390	26	100	M30
xvm 50-6		50000	3.70	9.60	0.71	83	6.3	290	B	680	373	155	390	310	470	34	198	420	30	110	M33
xvm 75-6		7500	5.50	12.60	0.82	81	8.0	380	B	730	420	248	440	370	520	38	240	490	35	120	M36
xvm 100-6		100000	7.50	17.93	0.79	81	7.7	510	C	860	420	140	440	420	520	34	240	490	35	120	M33
xvm 120-6		120000	9.50	21.70	0.81	83	6.8	590	D	890	480	118	460	490	550	38	260	520	35	120	M36
xvm 140-6		140000	9.50	21.70	0.81	83	6.8	625	D	930	480	118	460	490	550	38	260	520	35	120	M36
xvm 160-6		160000	12.00	27.37	0.82	81	6.4	695	D	980	480	118	460	490	550	3, 8	260	520	35	120	M36
xvm 180-6		180000	14.00	31.87	0.83	81	6.5	780	D	1050	510	120	520	531	610	45	270	560	38	125	M42
xvm 5-8	740	5000	0.40	1.62	0.57	68	3.2	82	B	466	250	180	235	230	285	19	140	315	22	75	M18
xvm 10-8		10000	0.75	2.90	0.57	72	4.1	131	B	560	285	224	270	274	330	21	157	340	24	80	M20
xvm 16-8		16000	1.50	4.02	0.70	80	4.6	149	B	600	285	224	270	274	330	21	157	340	24	80	M20
xvm 20-8		20000	2.20	5.93	0.69	80	4.7	185	B	600	320	180	350	270	420	32	176	390	26	100	M30
xvm 30-8		30000	3.00	8.10	0.69	82	5.6	292	B	680	373	155	390	310	470	34	198	420	30	110	M33
xvm 50-8		50000	4.00	10.60	0.69	82	6.0	380	B	730	420	248	440	370	520	38	240	490	35	120	M36
xvm 75-8		75000	6.50	17.10	0.68	81	5.6	510	C	860	420	140	440	420	520	34	240	490	35	120	M33
xvm 100-8		100000	8.50	21.80	0.73	81	5.4	625	D	930	480	118	460	490	550	38	260	520	35	120	M36
