宏源科技服務熱線：0373-2678028
Hongyuan vibration service hotline: 0373-2678028

GZD振動料斗產品概述:

GZD振動給料斗是一種新型的料倉破拱給料裝置,它裝在料倉底部,用作破拱和均勻給料。振動給料斗破拱性能好,對于料倉內的各種粉狀及粒狀物料都能實現破拱和連續均勻排料,可消除不同粒度、不同比重的混合物料在進入料倉時的偏析現象。其結構簡單，工作可靠，運轉平穩，噪音小，動力消耗少，使用壽命長，維修工作量小,生產率的調節范圍大。適用于圓形、方形、鋼質或混凝土的任何料倉。可以實現完全密封輸送，粉塵不外揚，不污染環境。
Product overview
GZD vibration hopper arch breaker is a new type of silo feeding device, it is installed in the bottom of the bin, used as a broken arch and uniform feeding.Vibration hopper to prevent performance is good, for all kinds of powdery and granular materials within the bin can achieve broken arch and continuous uniform discharge, can eliminate the mixture of different particle size and proportion of material segregation phenomenon when into the bin.Its simple structure, reliable operation, stable running, low noise, less power consumption, long service life, maintenance workload small, the productivity of the adjusting range is big.Suitable for round, square, steel or concrete bunker.it can be completely sealed conveying, dust not in public, do not pollute the environment.

GZD振動料斗主要特點:

GZD振動給料斗具有給料機的全部性能、有破拱、給料、截流、調流四種功能，給料松散、連續、均勻、準確、結構簡單、重量輕、工作可靠、操作容易、易損件少、能耗低、噪聲小于 72dB(A)、使用廣泛，對老倉、方倉、圓倉與新倉均可使用。
Features
GZD vibration hopper has all performance of coal feeder, a broken arch, feeding, river closure, basins, four function, feeding loose, continuous, uniform, accurate, simple structure, light weight, reliable operation, easy operation, less wearing parts, low energy consumption, noise is less than 72 db (A), widely used, the old warehouse, quadrate granary, silos and new warehouse all can use.

GZD振動料斗主要原理:

將振動電機接通電源,振動電機起振。其產生的激振力使給料斗下體在水平方向產生強烈的振動,此振動通過錐面或球面活化器將水平激振力分解為法向力和切向力,法向力呈放射狀傳遞到物料深處,切向力使物料受剪,從而消除倉內物料的起拱,使物料像流水一樣從出料口排出。切斷電源,振動電機停振,排料可停止。
Working principles
The vibration motor power, vibration motor vibrate.Its produce vibration force to a strong vibration hopper nakedness in a horizontal direction, the vibration by cone or spherical surface activator will level exciting force is decomposed into normal force and tangential force and normal force radiated to the deep material, tangential force make the material shear, thus removing the springing of warehouse material inside, make the material like water discharge through the discharging port.Cut off the power and vibration motor vibration, discharge can be stopped.

GZD振動料斗應用范圍: 在軍工及化學工業方面: 　　

硫酸銨、硝酸銨、高氯酸銨、氯化鉀、固體噴氣燃料、氯化氨、尿素、碳酸氫鈉、硫酸鋇、純堿、滑石、碳黑、活性碳、煤粉、熟石灰、顏料、添加劑等。

在機械及冶金工業方面: 　　

鑄型沙、鐵礦石、燒結礦、礦粉、氧化鐵粉、煤粉、二氧化錳、氧化鋁粉、氧化亞鉛、鋁粉、氧化鈦、鐵合金、非鐵合金添加劑、粘結劑、混合料等。

在陶瓷工業方面: 　　

粘土、陶土、二氧化硅、砂、拋光材料、熟石膏、鋁氧化粉等。　

在糧食及食品工業方面: 　　

面粉、大豆、花生、淀粉、奶粉、食鹽、砂糖、維生素補品等。

在塑料工業方面: 　

塑料粉、塑料顆粒、磨碎了的片料等。

在木材工業方面: 　

木屑、鋸木面、副產品等、

在建材工業方面: 　

水泥、水泥生料、付料等。

在環保方面: 　

過濾物、回收物、蘇打灰、飛灰、固定殘渣、廢料等。

在農業方面: 　

家畜飼料、養料、粉料等。


Applications
In the military industry and chemical industry:
Ammonium sulfate, ammonium nitrate, ammonium perchlorate, potassium chloride, solid jet fuel, ammonia, urea, sodium bicarbonate, chloride, barium sulfate, soda ash, talc, black carbon, activated carbon, coal powder, hydrated lime, pigments, additives, etc.
In the mechanical and metallurgical industry:
Casting sand, iron ore, sinter, kuangfen, ferric oxide powder, coal powder, manganese dioxide, alumina powder, lead oxide, aluminum, titanium oxide, ferroalloy, non-ferrous alloy additive, binder, mixture, etc.
In ceramic industry:
Clay, clay, silica, sand, polishing materials, plaster of Paris, the aluminum oxide powder, etc.
In the food and the food industry:
, soybean, peanut flour, starch, milk powder, salt, sugar, vitamin supplements, etc.
In the plastic industry:
Plastic powder, plastic particles, grinding the piece of material, etc.
In terms of wood industry:
Wood chips, wood sawing surface, by-products,
In the aspects of building materials industry:
Cement, cement raw meal, pay, etc.
In the aspect of environmental protection:
Filter material, recycling material, soda ash, fly ash, fixed residue, waste, etc.
In agriculture:
Livestock feed, food, powder, etc.

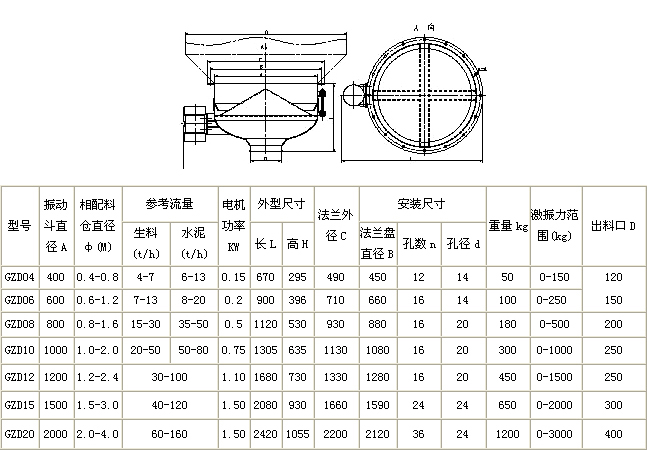

GZD振動料斗參數表:
Parameters
