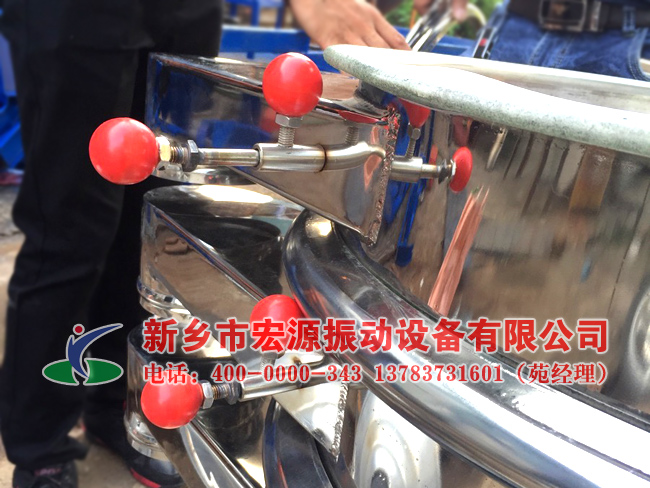

閘門型旋振篩產品概述

    閘門旋振篩是對特殊物料的處理有加閘門型設計，可保證篩分物料的機內停留時間，達到精度要求時，開啟閘門排出物料，用以保證篩分精度及處理量。但由于篩分時間的提高會造成篩分產量的降低，所以本系列旋振動篩更適合對產量沒有太高要求但對篩分精度有很高要求的物料篩分。



Product overview
   Gate rotary vibration screen is a special material processing with gate type design, can ensure the residence time in the machine of screening material, meet the precision requirements, the open gate discharge materials, to ensure accuracy of screening and processing.But due to the improvement of screening time cause to production reduce, so this series rotary vibrating screen is more suitable for the production requirements of not too high but have a high request for screening precision material screening.

閘門型旋振篩主要特點

    1、全封閉、無粉塵溢散、可連續作業；
    2、篩分精度高、效率高、篩網利用率高；
    3、體積小、重量輕、啟動迅速、噪音低；
    4、出料品方向可沿圓周方向任意改變。閘門型旋振篩主要適用行業：化工類：樹脂、涂料、顏料、橡膠、碳黑、活性炭、助溶劑、膠份、元明粉、聚乙稀粉、石英砂等。醫藥類：中藥粉、西藥粉、醫藥原料粉等。食品類：糖、鹽、味精、淀粉、奶粉、豆漿、果汁、米粉、脫水蔬菜、果汁、酵母液、鳳梨汁、魚粉、食品添加劑等。窯業類：玻璃、陶瓷、瓷泥漿、研磨材料、耐火磚材、高嶺土生石灰、云母、氧化鋁、碳酸鈣(重)等。金屬冶金類：鉛粉、氧化鋅、氧化鈦、鑄造砂、金剛粉、鋁粉、鐵粉、各種金屬粉末等公害處理類：廢水、廢油、糞尿等。

Features
1, totally enclosed, no dust overflow scattered, can continuous operation;
2, screening of high precision, high efficiency, high utilization rate of screen mesh;
3, small volume, light weight, start quickly, low noise;
4, discharging direction can be along the circumferential direction of any change.Type gate vibration sieve is mainly used industries: chemical, resin, paint, paint, rubber, carbon black and activated carbon, cosolvent, glue, sodium sulphate, poly (PVC powder, quartz sand, etc.In medicine: powder, powder, pharmaceutical raw materials powder, etc.Food: sugar, salt, monosodium glutamate, starch, milk powder, soybean milk, fruit juice, fermented rice, dehydrated vegetables, fruit juice, juice, pineapple juice, fish meal, food additive, etc.Ceramics, glass, pottery and porcelain, porcelain mud, grinding material, refractory material, kaolin, mica, aluminum oxide, calcium carbonate, calcium lime (heavy), etc.Metal metallurgy categories: lead oxide, zinc oxide, titanium oxide, casting sand, gold powder, aluminum powder, iron powder, all kinds of metal powder and other public hazards processing class: waste water, waste oil, waste, etc.

閘門型旋振篩技術參數

Parameters

XZS系列閘門型振動篩主要結構

    各種閘門型振動篩，一般由篩蓋（通常設有進料接口）、篩框（內裝篩網組件）、驅動裝置（通常為立式振動電機）、隔振裝置（一組支承彈簧）、底座等幾部分組成，其中，篩蓋與篩框為振動部分，其它部分為非振動部分，另外，底座兼有支承功用。篩框為閘門型振動篩的主要參振部分。篩框通常由板材卷焊而成，其上下端均有一承接圈，下內部設有一法蘭圈，用于固定篩網組件等結構。

Structures
    All kinds of gate type rotary vibrating screen, generally consist of the screen cover (usually with incoming interface), screen (built-in screen components), drive device (usually) for vertical vibration motor, vibration isolation device (a set of supporting spring), base and so on several parts, among them, the screen cover and screen flame to vibration parts, other parts for the no vibration, in addition, the base and supporting function.Screen flame for gate type vibrating screen is concluded the main part.Screen is usually composed of plank roll welding, the upper and lower end have to undertake a circle, the inner is equipped with a flange ring and screen mesh for fixed structure components, etc.

旋振篩一般結構圖

Structures picture

旋振篩設備振動力的調整

    通過改變振動電機的上下2塊偏心塊的夾角和質量，振動電機即可帶動設備產生不同大小的振動力，從而改變水平或垂直方向的振動幅度，進而改變篩分的流量和效率。下面表述幾個角度調整的一般特征。


Vibrating Force Adjustment
    By changing the vibration motor fluctuation two eccentric blocks Angle and quality, vibration motor can drive the device to produce different sizes of vibration, and transform the vibration amplitude of the horizontal and vertical direction, and change the flow rate and the efficiency of screening.The following describe general features of several Angle adjustment.b

0度 適用于對原料進 行大量的粗篩分	35度 適用于大多數原 料的篩分	60度 適用于精細原料 的精篩分	90度 特殊用途

旋振篩更換篩網方法

Ways of chaging the mesh
