超能振動篩是我廠在旋振篩的基礎之上經過不斷改進，最新推出的高效機型。該機通過對其內部結構的升級改造，使篩機于物料接觸的面積大幅提升，從而使單臺篩機的產量達到了兩臺篩機的產量，效能倍增。該機可使您在不增加設備數量的前提下，提高產能。不僅節約了電能，減少了占地面積，更降低了操作人員的數量及工作強度，從而有效的降低了生產成本，進而提高了廠家的競爭優勢，是普通旋振篩更新換代的首選產品。
    Super powers rotary vibrating screen is our factory  continuous improvement on the base of the rotary vibrating screen, the latest efficient models. Upgrading the machine through the internal structure make the part contact with material get biger so that the output of single sieve machine has reached the two sieve machine production, efficiency.This machine can make you without increasing the number of equipment, increase production capacity.Not only save energy, but to reduce the area, more reduced the number of operating personnel and working intensity, effectively reduces the production cost, and improve the competitive advantage of manufacturer, is the first choice for ordinary rotary vibrating screen upgrading products.

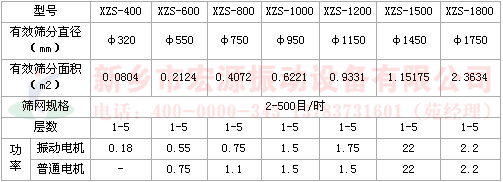

旋振篩技術參數

Parameters

旋振篩一般結構圖

Structures photo

旋振篩設備振動力的調整

    通過改變振動電機的上下2塊偏心塊的夾角和質量，振動電機即可帶動設備產生不同大小的振動力，從而改變水平或垂直方向的振動幅度，進而改變篩分的流量和效率。下面表述幾個角度調整的一般特征。


Vibrating Force Adjustment
    By changing the vibration motor fluctuation two eccentric blocks Angle and quality, vibration motor can drive the device to produce different sizes of vibration, and transform the vibration amplitude of the horizontal and vertical direction, and change the flow rate and the efficiency of screening.The following describe general features of several Angle adjustment.

0度 適用于對原料進 行大量的粗篩分	35度 適用于大多數原 料的篩分	60度 適用于精細原料 的精篩分	90度 特殊用途

旋振篩更換篩網方法

Ways of changing the mesh

    本機采用特質高性能立式振動電機，為您提供澎湃動力，支持長時間不間斷工作。
    機體與物料接觸部分全部采用一級不銹剛板，衛生，無菌抗腐蝕，耐磨性能出眾。
    宏源科技篩采用了獨特的V型加強型鎖緊束環和專業網架，更安全，更牢固。
    篩網更是使用了行業內的最尖端的繃網技術，極大的提高了篩網的有效面積，具有特高的篩分精度，使產量有了進一步提升。
    清洗方便，網目無堵塞，而且可以重復連續使用，換網更快、更方便，只需3-5分鐘。
    應用范圍廣，是食品、飲料、醫藥、化工、塑料、磨料、陶瓷、造紙、納米材料等行業進行分級、除雜、混料、篩分以及過濾。固液分離等的理想設備。
    適用行業:
    食品行業；化工行業；金屬、冶金礦業；醫藥行業；磨料冶金行業；陶瓷行業；環保行業
    振動調整對篩分方式的影響:
   通過改變振子相位角或振子質量，動力源即可帶動振子產生不通的激振力，進而改變水平向或垂直向的振幅，因此影響篩分流量和效率系數。下面表述幾個角度調整功效的一般特征。
    本廠可根據用戶需要而設計制造特殊型號規格的篩機。
   本廠對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準，解釋權歸本廠。

The machine adopts high-performance vertical vibration motor, to provide you with surging power, support long uninterrupted work.
The body and material contact parts are all made of first-class stainless plate just now, health, sterile corrosion resistant, wear-resisting performance is outstanding.
Hongyuan vibrating screen use a unique v-shaped reinforced lock clamps and professional network frame, more secure, more strong.
Screen mesh is used in the industry of the guy at the top of the net technology, greatly improve the effective area of screen mesh, screen with high accuracy, a further increase in production.
And convenient cleaning, no jams mesh, can be repeated continuous use, faster, more convenient, to replace the network only for 3 to 5 minutes.
Application range is wide, is the food, beverage, medicine, chemical, plastics, abrasives, ceramics, papermaking, nano materials and other industries were classified, removing impurity, blending, screening and filtering.The ideal equipment of solid-liquid separation, etc.
Applicable industry:
The food industry.Chemical industry;Metal, metallurgical mining;The pharmaceutical industry;Abrasive metallurgical industry;Ceramic industry.The environmental protection industry
The influence of the adjustment of vibration sieve way:
By changing the oscillator phase Angle or oscillator quality, power supply can stimulate zi chan was born not of vibration exciting force, then change the horizontal or vertical amplitude, thus affect the screen efficiency coefficient and quantity of the shunt.The following expression character of several Angle adjustment function.
Our factory can design and manufacture according to user needs special specifications of the sieve machine.
The factory for all technical data, reserve the right to modify the size, such as material object does not accord with the design, the material shall prevail, to the factory.
