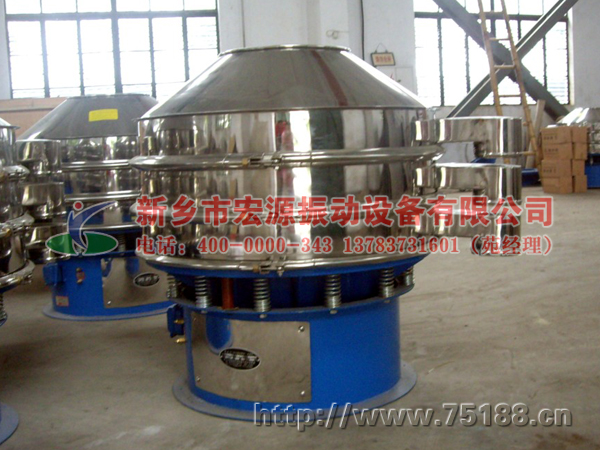

加緣型旋振篩概述

  該系列旋振篩是我廠在吸收國內外先進技術基礎上，設計出的具有國內先進水平的特殊性、高粘度、細粒物料篩分設備，主要用于篩分細粉、微粉、及干、濕物料等

Product overview
   The vibration screen series is on the basis of absorbing domestic and foreign advanced technology, design with the particularity of the domestic advanced level, high viscosity, fine grained material sieving equipment, mainly used for screening fine powder, powder, and the dry and wet materials, etc



加緣型旋振篩特點

  1、全封閉、無粉塵溢散、可連續作業；　　2、篩分精度高、效率高、篩網利用率高；　　
  3、體積小、重量輕、啟動迅速、噪音低；　　4、出料品方向可沿圓周方向任意改變。

Features
1, totally enclosed, no dust overflow scattered, continuous operation;
2, screening of high precision, high efficiency, high utilization rate of screen mesh;
3, small volume, light weight, start quickly, low noise;
4, discharging direction can be along the circumferential direction of any change.

加緣型旋振篩適用行業

  化工類：樹脂、涂料、顏料、橡膠、碳黑、活性炭、助溶劑、膠份、元明粉、聚乙稀粉、石英砂等。
  醫藥類：中藥粉、西藥粉、醫藥原料粉等。
  食品類：糖、鹽、味精、淀粉、奶粉、豆?jié){、果汁、米粉、脫水蔬菜、果汁、酵母液、鳳梨汁、魚粉、食品添加劑等。
  窯業類：玻璃、陶瓷、瓷泥漿、研磨材料、耐火磚材、高嶺土生石灰、云母、氧化鋁、碳酸鈣(重)等。
  金屬冶金類：鉛粉、氧化鋅、氧化鈦、鑄造砂、金剛粉、鋁粉、鐵粉、各種金屬粉末等。
  公害處理類：廢水、廢油、糞尿等。
  加緣型旋振篩咨詢熱線：0373-2678028，聯系人：苑經理。

Applications.
Chemical industry: resin, paint, paint, rubber, carbon black and activated carbon, cosolvent, glue, sodium sulphate, poly (PVC powder, quartz sand, etc.
In medicine: powder, powder, pharmaceutical raw materials powder, etc.
Food: sugar, salt, monosodium glutamate, starch, milk powder, soybean milk, fruit juice, fermented rice, dehydrated vegetables, fruit juice, juice, pineapple juice, fish meal, food additive, etc.
Ceramics, glass, pottery and porcelain, porcelain mud, grinding material, refractory material, kaolin, mica, aluminum oxide, calcium carbonate, calcium lime (heavy), etc.
Metal metallurgy categories: lead oxide, zinc oxide, titanium oxide, casting sand, gold powder, aluminum powder, iron powder, all kinds of metal powder, etc.
Pollution processing categories: waste water, waste oil, manure, etc.
Add edge type rotary vibration screen hotline: 0373-2678028, contact: Manager Yuan.


旋振篩技術參數

parameters

旋振篩一般結構圖

Structures

旋振篩設備振動力的調整

    通過改變振動電機的上下2塊偏心塊的夾角和質量，振動電機即可帶動設備產生不同大小的振動力，從而改變水平或垂直方向的振動幅度，進而改變篩分的流量和效率。下面表述幾個角度調整的一般特征。

Vibrating Force Adjustment
    By changing the vibration motor fluctuation two eccentric blocks Angle and quality, vibration motor can drive the device to produce different sizes of vibration, and transform the vibration amplitude of the horizontal and vertical direction, and change the flow rate and the efficiency of screening.The following describe general features of several Angle adjustment.

0度 適用于對原料進 行大量的粗篩分	35度 適用于大多數原 料的篩分	60度 適用于精細原料 的精篩分	90度 特殊用途

旋振篩更換篩網方法

Ways of chaging the mesh
