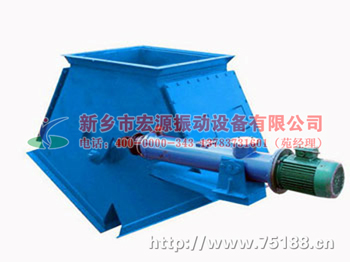

DSF型 電液動三通分料器
其中DSF-A（B）型電液動三通分料器可用于物料換向/分流。且允許在有料流通過時換向；DSF-C（D、E）型電液動三能分料器可用于物料換向分流，并且有閘門的功能；同時控制物料切斷或同時流通的作用。工作原理是通過電液推桿帶動三能分料器的轉軸機構，來控制翻板翻轉，達到物料換向的作用。本產品可以直接將上部法蘭接在膠帶機頭部漏斗下或其它設備下料接口處，其一般用于在堆比重小于等于2.8t/m3且磨琢性較大、工作環境惡劣的條件下。考慮到其結構尺寸大、重量大(耐磨襯板較厚)，上部法蘭無法承受自身重量，使用須根據實際情況另加支承。
DSF - (A, B, C, D, E) three reduction to common denomiator type electric hydraulic device uses electric hydraulic draw stem as a power source.Because of its automatic overload protection performance, when run up, increases pressure in the oil to the setting of limits, the overflow, overflow valve quickly and accurately for overload protection.The motor operates within the rating will not burn.When push rod run to the set itinerary terminal, electric hydraulic draw stem hydraulic integrated block design the self-locking mechanism, motor stops, the piston rod is latching position on this, in the state of pressure keeping.
The DSF - A (B) three reduction to common denomiator type electric hydraulic device can be used for material reversing/shunt.And allow the obsolete material circulation commutation;DSF - C (D and E) type electric hydraulic SanNeng distributor plastic can be used for reversing, and has the function of the gate;At the same time control the material to cut off or the role of circulation at the same time.Working principle is through the electric hydraulic draw stem drive SanNeng the distributor rotor institutions, to control turning, turning, reach the role of material commutation.This product can be directly to the upper flange joint under tape sports a funnel or other equipment, material interface, its are commonly used in bulk density less than or equal to 2.8 t/m3 and grinding cut larger, under the condition of poor working conditions.Considering the structure size, weight, big (wearing plate thicker), the upper flange can't bear its weight, use must be according to actual circumstances, plus support.
| 適用介質 | 含塵固體顆粒或粉料 | 電源電壓 | 380V50HZ |
| 適用溫度 | ≤350℃ | 調節特性 | 常規情況二位開關式 |
| 電液推桿型號 | DYT系列 | 特殊情況4-20m A電信號 | |
