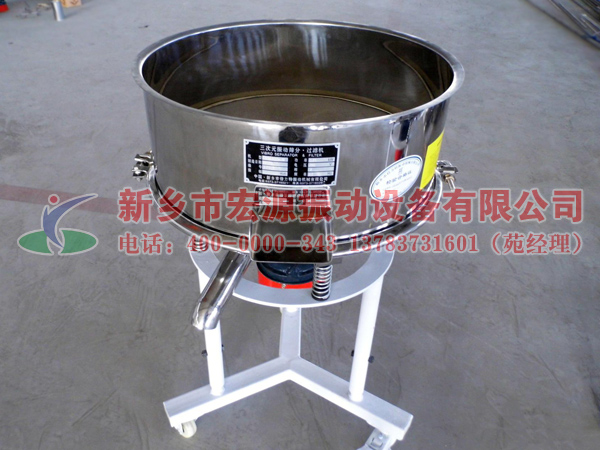

圓形高頻篩
圓形高頻篩概述
高頻振動篩具有篩分效率高、設備振幅小、振動頻率高等多種優點。由于高頻振動篩使用的是特制高頻振動電機而且機體采用了獨特的超高頻率的結構設計，所以與普通篩分機的原理有很大不同。這種設計可以輕松的破壞物料表面的張力，而且加速了微粒物料在篩網表面的高速振蕩，進而加速了大密度（大比重）物料的分離速度，大幅增加了小于篩網網孔的物料與篩孔接觸的概率，從而創造了很好的分離條件，使小于篩網網孔的物料，特別是比重較大的物粒快速篩分分離。Product Overview
High frequency vibrating screen is high efficiency, high amplitude of equipment and vibration frequency multiple advantages.Due to the high frequency vibrating screen is used special high-frequency vibration motor and the body adopts the unique design of the structure of ultrahigh frequency so and the principle of ordinary sieving machine is different.This design can easily destroy the tension on the surface of the material, and to accelerate the particles in the material on the surface of the mesh screen, high speed oscillation, thus speeding up the big density (specific gravity) of material separation speed, increase the materials smaller than the screen mesh and mesh contact probability, thus creating the good separation conditions, make the materials smaller than the screen mesh, especially the proportion of large grain of rapid screening separation.High frequency vibrating screen is high efficiency, high amplitude of equipment and vibration frequency multiple advantages.Due to the high frequency vibrating screen is used special high-frequency vibration motor and the body by the unique design of the structure of ultrahigh frequency so and the principle of ordinary sieving machine is different.This design can easily destroy the tension on the surface of the material, and to accelerate the particles in the material on the surface of the mesh screen, high speed oscillation, thus speeding up the big density (specific gravity) of material separation speed, increase the materials smaller than the screen mesh and mesh contact probability, thus creating the good separation conditions, make the materials smaller than the screen mesh, especially the proportion of large grain of rapid screening separation.
High frequency vibrating screen solid powder or filtering slurry processing are substantially beyond the ordinary circular vibrating screen, superior performance.
圓形高頻篩適用范圍
高頻篩廣泛應用于食品、醫藥、化工、磨料、陶瓷、礦業、顏料、冶金、地質、國防、電子等行業的粉料、顆粒、漿料的篩分分級和過濾。Applications
High frequency screen is widely used in food, medicine, chemical, abrasive, ceramic, mining, paint, metallurgy, geology, defence, electronics and other industries of powder, granule, pulp screening grading and filtering.
圓形高頻篩主要特點
1、采用特制高頻率振動電機，具有噪聲低，體積小，重量輕, 耗電量小, 過載能力強，外觀精細等特點，屬新一代環保產品。2、采用自主研制的“Z“型網架，單層網結構, 取消了傳統雙層網之間相互摩擦的弊病，使用壽命延長了2～3倍，并且換網方便簡捷，更換一次只需3-5分鐘。
3、安裝有活動車架，在工作場所可以隨意移動，并且高低可調，不用進行復雜的安裝，操作簡單，不易損壞。
4、獨特的碟形設計，既便于觀察物料又無濺料現象，效果更佳。
5、震幅小，頻率高，達3000次/分，物料篩分效果好。
6、與原料接觸部位皆采用SUS304材質制作，外形美觀。
7、IP54的防護等級、F級絕緣，即使全天24小時工作制，也打打延長了電機的壽命，且使電機在惡劣的環境下還可以正常運轉。
Feature
1, use special high frequency vibration motor, low noise, small volume, light weight, small power consumption, overload capacity is strong, fine appearance etc, belong to a new generation of environmentally friendly products.
2, the use of the independently developed "Z" type rack, single-layer network structure, cancelled the disadvantages of traditional friction between networks double extended service life by 2 ~ 3 times, easy and convenient to replace the network, change only 3-5 minutes at a time.
3, installation activities of frame, in the workplace are free to move, and the height is adjustable, need not complex installation, simple operation, it is not easy to damage.
4, the unique design of disc for observation material and no splashing material, the effect is much better.
Small five, breadth, high frequency, 3000 times/min, material screening effect is good.
6, and raw material contact parts are made of SUS304 material good appearance.
7, protection class IP54, F class insulation, even 24 hours a day work week, played to extend the service life of motor, and make the motor can operate properly under the harsh environment.

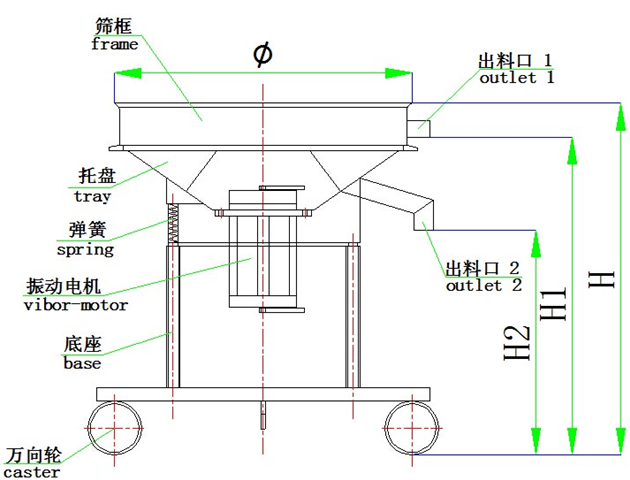

圓形高頻篩結構示意圖
Structure
圓形高頻篩技術參數
Parameters| 產品型號 | 電機功率 | 篩網有效直徑 | 激振力 | 重量 |
|---|---|---|---|---|
| GP-450 | 250w | 420mm | 180kg | 50kg |
| GP-600 | 370w | 550mm | 350kg | 65kg |
| GP-800 | 550w | 760mm | 680kg | 78kg |
| GP-1000 | 750w | 930mm | 1000kg | 130kg |
