NE系列板鏈斗式提升機產品概述

   提升機是應用最廣泛的一種垂直提升設備,該機適用于中、大塊和有磨琢性的物料(如石灰石、水泥熟料、石膏、塊煤)的垂直輸送,物料溫度在250℃以下。

    NE型板鏈斗式提升機是由國外引進先進技術研制的新產品，主要技術參數符合機械部標準(JB3926-85)。采用自流式裝料,重力式卸料.鏈條是優質合金鋼高強度板式鏈條,耐磨而可靠。驅動部分采用硬齒面減速器。NE系列板鏈?zhǔn)蕉肥教嵘龣C(jī)共有11種型號:NE15、NE30、NE50、NE150、NE200、NE300、NE400、NE500、NE600、NE800。

Product overview
     Hoist is the most widely used a vertical lifting equipment, this machine is suitable for medium and large and have cut grinding materials (such as limestone, cement clinker, gypsum and coal) of vertical transportation, the material temperature below 250 ℃.
    NE plate chain bucket elevator is a new product developed by the introduction of advanced foreign technology, main technical parameters meet the mechanical standard (JB3926-85).Using the streaming charging, gravity discharge. The chain is high quality alloy high strength plate chain, wear-resisting and reliable.Driving part adopts hard tooth surface gear reducer.NE series plate chain bucket elevator with a total of 11 kinds of models: NE15, NE30, NE50, NE150, NE200, NE300, NE400, NE500, NE600, NE800.

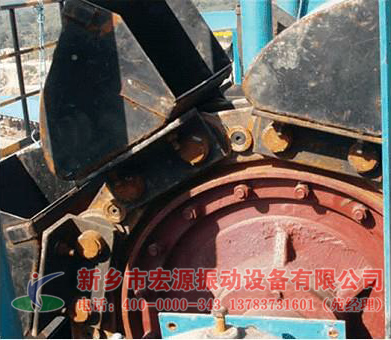

NE系列板鏈斗式提升機主要結構

Structures

    NE系列板鏈?zhǔn)蕉肥教嵘龣C(jī)由運行部件、驅動裝置、上部裝置、中部機殼、下部裝置組成。
    Series of NE plate chain bucket elevator running parts, driving device, the upper device, central casing, the lower unit.

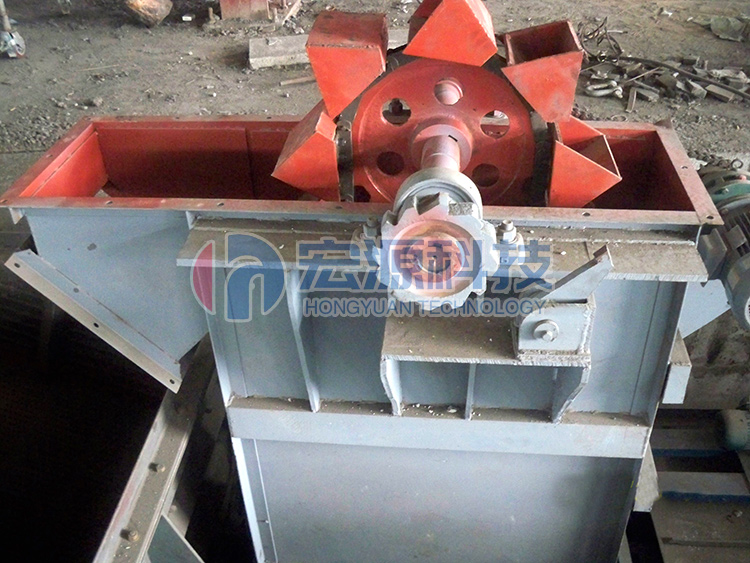

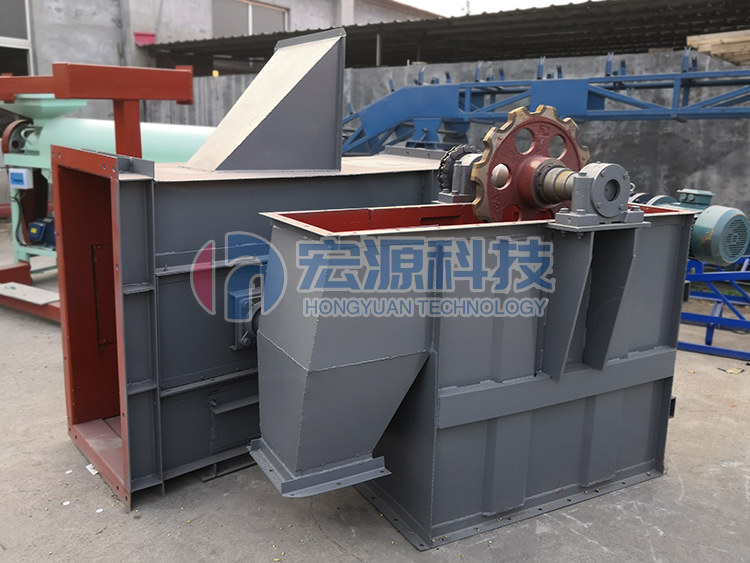

板鏈斗式提升機機頭、箱體、料斗
Head, body, hopper

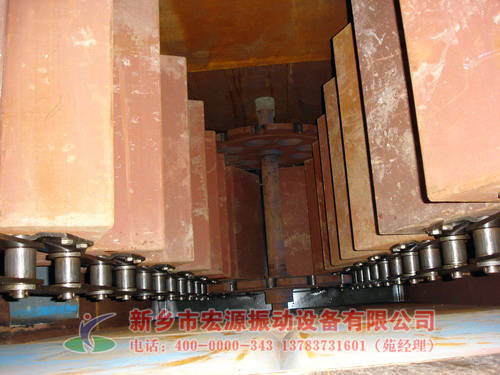

    運行部件---由料斗和專用板式鏈條組成,NE30以及下采用單排鏈,NE50--NE800采用雙排鏈。
    Run parts - composed of hopper and special plate chain, NE30 and adopt single chain, NE50 - NE800 with double row of chain.

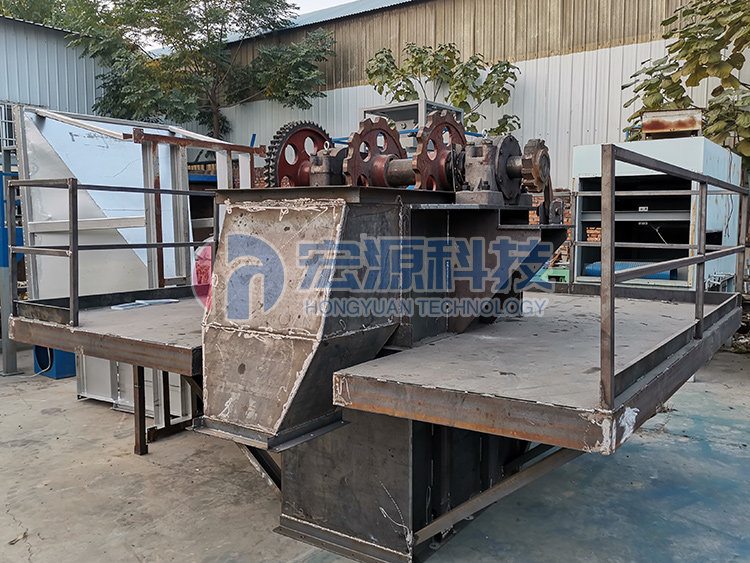

NE50板鏈斗式提升機，雙排鏈
NE50 - NE800 with double row of chain.

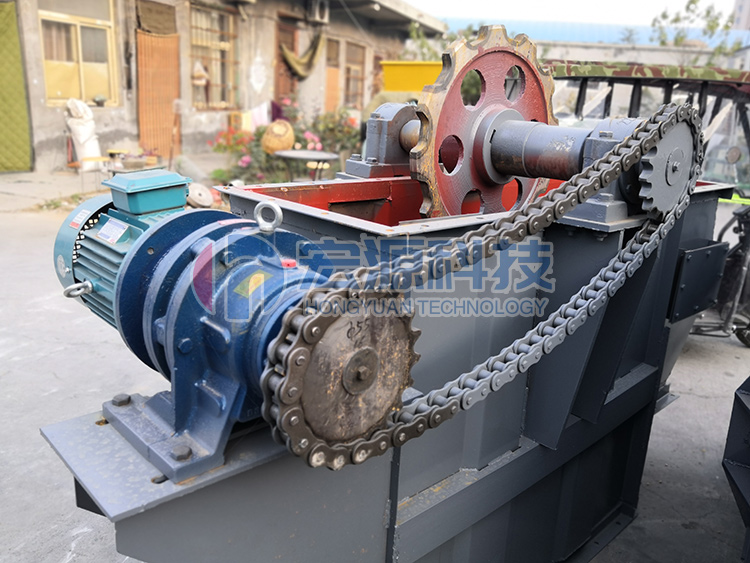

NE30板鏈斗式提升機，單排鏈
NE30 plate chain bucket elevator with single chain

     驅動裝置---采用多種驅動組合驅動,(依用戶實際需要而定).驅動平臺上裝有檢修架和欄桿。驅動制裝置分左和右裝兩種。
    上部裝置---安裝有軌道(雙排鏈)、逆止器、卸料口裝有防回料橡膠板。
    中間節---部分中間節裝有軌道(雙鏈),以防止鏈條工作中擺動。
    下部裝置---安裝有自動張緊裝置。
Driving gear drive - driven by a variety of combinations, (according to the user's actual needs). Driving platform equipped with maintenance and rail.Drive device points in both left and right.
The upper device - installed orbit (double row chain), non-return device, discharge outlet is equipped with rubber back.
Middle section - part of the middle section is equipped with orbit (double chain), in order to prevent the chain of oscillation.
The lower device - equipped with automatic tensioning device.

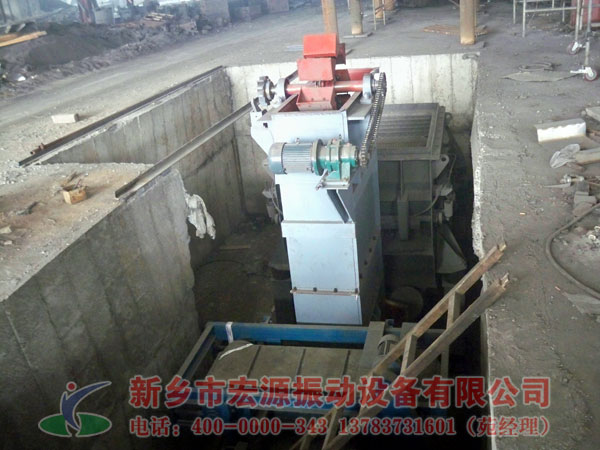

斗式提升機現場圖片

Working site

NE系列板鏈斗式提升機工作原理

    NE系列板鏈?zhǔn)蕉肥教嵘龣C(jī)本機系流入式喂料，物料流入料斗內靠板鏈提升到頂端，在物料重力作用下自行卸料。本系列提升機規格多(NE15~NE800共11種)提升量廣；且生產能高，能耗較低，可逐步代替其他類型提升機，其主要參數見下表。該機采用全封式機殼鏈速低，幾乎無回料現象，因此無功功率損耗少，噪聲低，壽命長。

Working principles

   NE series plate chain bucket elevator machine is flow into the type of feeding, material  flow into the hopper by plate chain ascend to the top, in the material under the action of gravity discharge itself.This series hoist specification (a total of 11 NE15 ~ NE800) more wide lifting capacity;And can produce high, low energy consumption, can gradually take the place of other type hoist, its main parameters, see the table below.This drill adopts full casing chain sealing speed is low, almost no back to the material, so the reactive power loss, low noise, long service life.

NE系列板鏈斗式提升機主要特點

   1.密封性好，環金污染少。
   2.操作、維修方便、易損件少。
   3.使用成本低，由于節能和維修少，使用成本極低。
   4.運行可靠，先進的設計原理，保證整機運行的可靠性，密封性好。環境污染少。
   5.結構港型號，精度高。機殼經折邊和中間壓筋，再經焊接，剛性好、外觀漂亮。
   6.機械尺寸小，與同等提升量的其它各種提升機相比，這種提升機的機械尺寸較小。
   7.輸送能力大，該系列提升機具有NE15～NE800多種規格。提升量范圍為15～800m3/h。
   8.操作方便，維修少，易損件少。輸送鏈為套筒滾子鏈，誘導式重力卸料，用于各種粉狀、塊狀物粒的垂直提升。
Features
1. The good sealing and less pollution.
2. Operation, easy maintenance, less wearing parts.
3. The use of low cost, as a result of energy saving and less maintenance, low use cost.
4. Reliable operation, advanced design principle, guarantee the machine running reliability and good sealing.Less environmental pollution.
5. Port type structure, high precision.Casing by folding and intermediate embossing, then through welding, good rigidity, beautiful appearance.
6. Mechanical size is small, compared with the same lifting capacity of other kinds of hoist, this elevator mechanical size is smaller.
7. Large conveying capacity, this series of machines have a variety of specifications NE15 ~ NE800 ascension.Lifting capacity range of 15-800 m3 / h.
8. Easy operation, less maintenance, less wearing parts.Roller chain conveyor chain for socket, induction gravity discharge, used for all kinds of powder, lumps of vertical ascent.

NE系列板鏈斗式提升機主要部件特點

   1.上部裝置：安裝有軌道（雙排道），防止鏈條擺動，逆止器，防止料斗回轉，物料阻滿下部機殼，卸料口裝有橡膠板防止回料。
   2.中間節：部分中間節裝有軌道（雙排節），以防止鏈條工作中擺動，部分中間節裝有檢修門以便維修。
   3.下部裝置：安裝有張緊裝置， NE15~NE50采用彈簧張緊，NE100~NE800采用重錘箱張緊。
   4.上下鏈輪采用 ZG310-570。整體調質，HB229-269齒面淬火HRC40~48。
   5.板鏈：鏈板采用 45 # HRC36~42
Parts
1. The upper device equipped with orbit (double row), to prevent the chain of swing, non-return device, prevent hopper, rotary resistance material with lower chassis, discharge outlet is equipped with rubber to prevent material.
2. The middle section, part of the middle section is equipped with orbit (double row), in order to prevent the chain of swing, part of the middle section is equipped with the access door to repair.
3. The lower device: install a tensioning device, NE15 ~ NE50 USES the spring tension, tensioning NE100 ~ NE800 adopts heavy hammer box.
4. The sprocket wheel up and down the ZG310-570.Overall conditioning, the tooth surface quenching HRC40 HB229-269-48.
5. Plate chain: chain plate adopt 45 # HRC36 ~ 42

NE系列板鏈斗式提升機技術參數表

Parameters

型號	提升量	料斗			運行部件重量 (kg/m)	物料最大料度
	m3/h	容積（L）	斗距mm	斗速m/min		占百分比%
						10	25	50	75	100
NE15	16	2.5	203.2	29.8	28	65	50	40	30	25
NE30	31	7.8	304.8	30.1	35	90	75	58	47	40
NE50	60	14.7	304.8	30.1	64	90	75	58	47	40
NE100	110	35	400	31	89	130	105	80	65	55
NE150	165	52.2	400	31	112	130	105	80	65	55
NE200	220	84.6	500	30	134	170	135	100	85	70
NE300	320	127.5	500	30	188	170	135	100	85	70
NE400	441	182.5	600	30	205	205	165	125	105	90
NE500	470	260.9	700	30	223	240	190	145	120	100
NE600	600	300.2	700	30	274	240	190	145	120	100
NE800	800	501.8	800	30	313	275	220	165	135	110
