TH型斗式提升機產品概述

    TH系列斗式提升機適用于輸送粉狀、粒狀及小塊狀的無磨琢及磨琢性小的物料。TH型是一種圓環鏈斗式提升機采用混合式或重力卸料，挖取式裝料。牽引件用優質合金鋼高度圓環鏈。中部機殼分單、雙通道兩種形式為機內重錘箱恒力自動張緊。鏈輪采用可換輪緣組合式結構。使用壽命長，輪緣更換工作簡便。下部采用重力自動張緊裝置，能保持恒定的張緊力，避免打滑或脫鏈，同時料斗遇到偶然因素引起的卡殼現象時有一定的容讓性，能夠有效地保護下部軸等部件。該斗式提升機適用于輸送堆積密度小于1.5t/m3易于掏取的粉狀、粒狀、小塊狀的底磨琢性物料。如煤、水泥、碎石、砂子、化肥、糧食等。TH型斗式提升機用于各種散狀物料的垂直輸送。適用于輸送粉狀、粒狀、小塊狀物料，物料溫度在250℃以下。

    本機備有二種料斗：ZH型(中深斗)一般適用于輸送濕的、易結塊、較難拋出的物料，如濕砂、型砂、化肥、堿肥、堿粉等。SH型(深斗)一般適用于輸送干燥的、松散易于拋出的物料，如水泥、碎石、煤塊等。

    本機傳動裝置有二種形式，分別配有ZJ型減速器和ZQ型減速器。ZJ型軸裝減速器直接套裝在主軸軸頭上，省去了傳動平臺，聯軸器等，使結構緊湊、重量輕、而且內部帶有異型輥逆止器，逆止可靠，該減速器噪聲低，運轉平穩，并隨主軸浮動，可消除安裝應力。本機最大輸送量365m3/h,最大提升高度為50m。

Product overview
  TH series bucket elevator is suitable for conveying powder, granulated and small lump without cut and grinding cut small material.TH type is a kind of round link chain bucket elevator adopt the hybrid or gravity discharge, harvest type charging.Traction chain with high quality alloy steel high circle.Central casing of single and double channel within a machine two forms of heavy hammer tank automatic tension constant force.Sprocket using renewable rim composite structure.Long service life and easy rim change of jobs.Gravity automatic tensioning device for the bottom, can keep constant tension and avoid skid or take off the chain, hopper at the same time meet the stuck phenomenon caused by the accidental factors have certain let sex, can effectively protect the lower shaft parts, etc.The bucket elevator is suitable for conveying bulk density is less than 1.5 t/m3 is easy to take out the powder, granulated and small lump materials at the bottom of the grinding cut.Such as coal, cement, gravel, sand, fertilizer, food, etc.TH type bucket elevator used for vertical transportation of various kinds of material.Suitable for conveying powder, granular, small block material, material temperature below 250 ℃.

This machine is equipped with two types of hopper: ZH (in a deep bucket) generally applicable to transport the wet material, easy to agglomerate, difficult to them, such as wet sand, sand, chemical fertilizers, base fertilizer, alkali powder, etc.SH type (deep bucket) generally applies to transport dry, loose easily throw materials, such as cement, gravel, coal, etc.
The machine drive has two forms, one is equipped with what ZJ had type reducer and ZQ type gear reducer.Reducer directly suit with what ZJ had type shaft in main shaft head, eliminating the transmission platform, coupling, etc., make the internal with compact structure, light weight, and different roller non-return device, non-return is reliable, the reducer low noise, smooth operation, and with the main shaft floating, can eliminate stress.The machine maximum throughput of 365 m3 / h, the biggest hoisting height is 50 m.

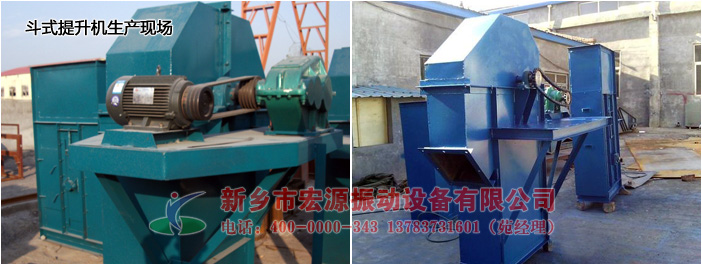

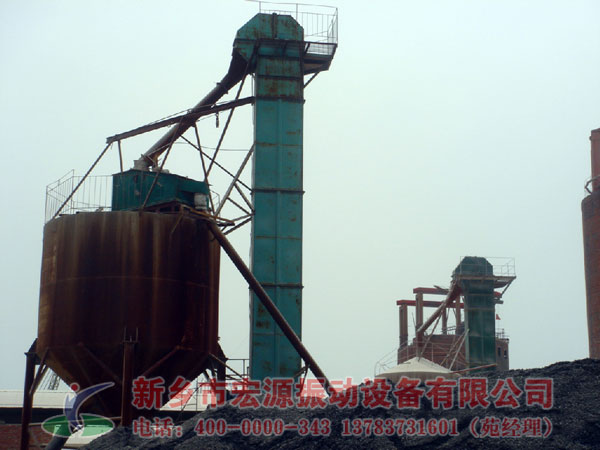

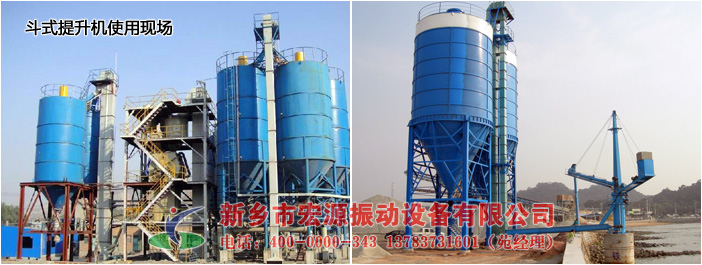

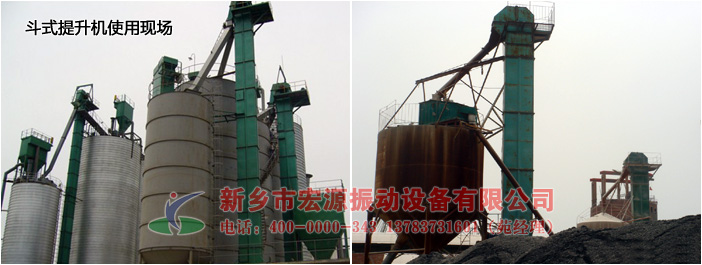

斗式提升機現場圖片

Working site

TH型斗式提升機主要特點

1.維護方便，壽命長。
2.機殼鋼板加厚、剛性好。
3.輸送物料的溫度最高可達250℃。
4.中節機殼具有單通道和雙通道兩種形式。
5.提升高度運行平穩可靠，噪音小，維護方便。
6.改進機型的提升輸送量比普通機型提高30%以上。
7.提升機環鏈采用低合金鋼鍛造，并經滲碳淬火處理，具有極高的抗拉強度和耐磨性能。

Features
1. Easy maintenance, long service life.
2. The chassis plate thickening, good rigidity.
3. The conveying material temperature up to 250 ℃.
Section 4. In the case with a single channel and dual channel two forms.
5. Hoisting height stable and reliable operation, low noise, easy maintenance.
6. Improve models improve throughput is 30% greater than normal models.
7. Hoist chain using low alloy steel forging, and after carburizing and quenching processes, and have high tensile strength and wear resistance.

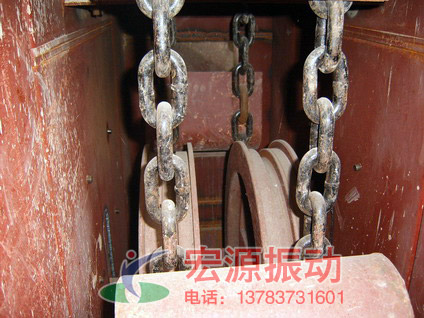

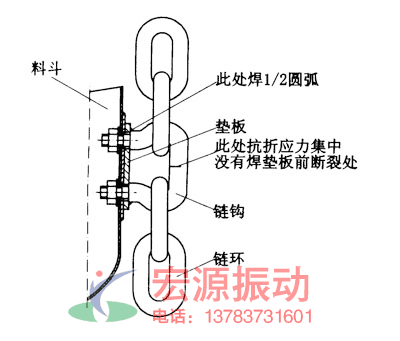

TH型環鏈斗式提升機鏈條結構圖

The chain Structures

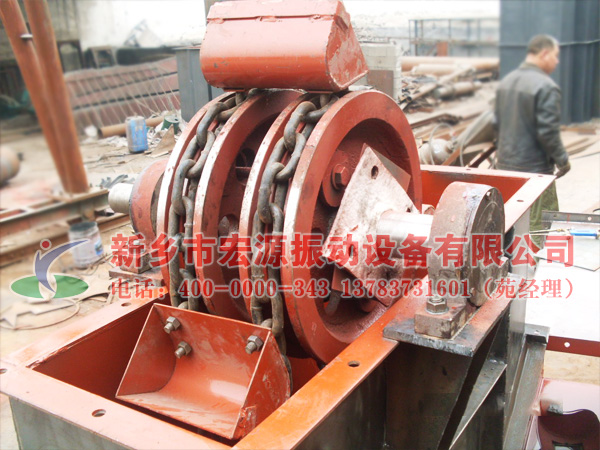

環鏈斗式提升機機頭

TH型斗式提升機技術參數表
Parameters

型 號		TH160		TH250		TH315		TH400		TH500		TH630		TH800		TH1000		TH1250
料斗型式		zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh
輸送能力，m 3 /h		19	30	30	48	35	59	58	94	73	118	114	185	150	240	240	360	360	540
料斗	料斗容量(l)	1.2	1.9	3	4.8	3.75	6	5.9	9.5	9.3	15	14.6	23.6	24	38	38	60	60	95
	斗距(mm)	350		450		512				688				936		936		1001
鏈條	園鋼直徑 x節（mm)	φ12X45		φ18X64						φ22X86				φ24X86		φ24X86		φ28X92
	單鏈條破 斷強（KN)	≥170		≥320						≥480				≥560		≥560		≥660
料斗運動 速度 (m/s)		1.3		1.2		1.4				1.5				1.6		1.6		1.6
傳動鏈輪轉數 (r/min)		62.5		46.8		42.5		37.6		35.8		31.8		30.5		30.5		28
輸送物料的 最大塊度（mm）		20		25		35		40		50		60		75		85		100

注釋:上表為TH型160、200、250型斗式提升機技術參數表,表中料斗容積為盛水容積,輸送量按此斗容計算時為100%填充。

1.表中斗容為計算斗容,輸送量按填充系數0.6計算得出。

2.TH型斗提機料斗用途:

Zh--中深斗:輸送濕粘性物料,如糖、濕細沙等。

Sh--深斗:輸送重的粉狀至小塊狀物料,如水泥、砂、煤等。

3.HL型斗提機料斗用途:

Q--淺園底料斗:輸送潮濕、易結塊、難拋出的物料,如濕沙、濕煤等。

S--深園底料斗:輸送干燥的、松散的、易拋出的物料,如水泥、煤塊、碎石等。

4.張緊力計算:

G=40+0.232·H

式中:Q--輸送量(t/h) H--提升高度(mm) G--張緊力(kg)

Note: the above type TH 160, 200, 250 type bucket elevator technology parameter table, it in the hopper volume as the water volume, throughput in this bucket volume calculation of 100% fill.
In the table 1. The bucket volume to calculate the bucket volume, throughput calculated according to the filling coefficient of 0.6.
2. TH type hopper bucket machine use:
Useful in deep bucket: transport, wet sticky materials such as sugar, wet sand, etc.
Sh - deep bucket: transport, heavy powder to small block materials such as cement, sand, coal, etc.
3. The HL type hopper bucket machine use:
Q - shallow garden at the bottom of hopper: transporting materials in damp, easy to agglomerate, difficult to throw, such as wet sand, wet coal, etc.
S - deep bottom of the garden hopper: conveying dry, loose, easy to throw materials, such as cement, coal, gravel, etc.
4. The tension calculation:
H. G = 40 + 0.232
Type: Q - throughput (t/h) h - hoisting height (mm) G - tension (kg)

型號規格	YY型驅動裝置	YY型驅動裝置
			C1	C2	C3	C4	C1	C2	C3	C4
TH315	Y5Y125	Y7Y140									Y11Y160	Y15Y180	Y5J4	Y7J4	Y11J5	Y15J5
TH400	Y11Y160	Y15Y180	Y18Y180	Y22Y200	Y11J5	Y15J6	Y18J6	Y55J6
TH500	Y15Y180	Y18Y200	Y22Y200	Y30Y224	Y15J6	Y18J6	Y22J6	?
TH630	Y18Y200	Y22Y224	Y30Y224	Y37Y250	Y18J6	Y22J6	?	?

說明:Y5Y125表示Y型電機功率為5.5KW,ZLY125型減速機。

Y11J5表示Y型電機功率11KW,JZQ500型減速機。

Description: Y5Y125 show Y type motor power is 5.5 KW, ZLY125 type reducer.
Y11J5 show Y type 11 kw motor power, JZQ500 type reducer.
