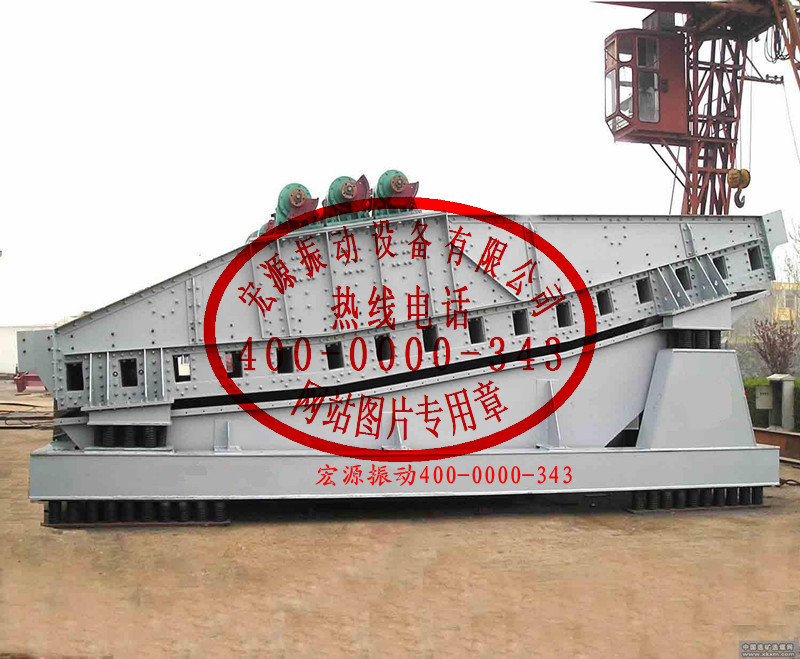

SDH直線等厚振動篩產品概述

    SDH型直線等厚振動篩是一種直線振動篩,用于煤炭行業分級、脫水、脫介等篩分作業。SDH等厚直線篩通過篩面角度變化得到物料等厚的效果是大型選煤廠、燒結廠、選礦廠的首選設備。SDH直線等厚振動篩機面由不同傾角的多區段(一般為三段)組成，使篩分物料在各區段呈近似等厚分布，有利于物料在篩面上的輸送、分層和透篩。

Product overview
   SDH type uniform thickness linear vibrating screen is a kind of linear vibrating screen that used in the coal industry classification, dewatering, medium such as screening homework.SDH thickness linear sieve material thickness is obtained by the changes in the angle of screen surface effect is the first choice of large coal preparation plant, sintering plant, concentrator.SDH uniform thckness linear vibrating screen surface pass several sections of different angle (typically as consisting of three parts), the screening material approximate thickness distribution in different sections, to delivery of materials on the screen mesh, layering and through screen.

    SDH型直線等厚振動篩也廣泛適用于煤碳、冶金、礦山、電力、建材、輕工和化工等行業對各種顆粒狀和小塊狀松散固體物料的干式分級。

    SDH type uniform thickness linear vibrating screen is widely used in coal, metallurgy, mining, power, building materials, light industry and chemical industry for a variety of loose solid material in granular and small pieces of dry classification.

SDH直線等厚振動篩主要特點

1.高效篩分,效率達到了原有篩機的1.5～5倍。
2.本機采用特制高性能立式振動電機，為您提供澎湃動力，支持長時間不間斷工作。
3.機體與物料接觸部分全部采用一級不銹鋼板，衛生，無菌，抗腐蝕，耐磨性能出眾。
4.清洗方便，網目無堵塞，而且可以重復連續使用，換網更快、更方便，只需3-5分鐘。
5.篩網更是使用了行業內最尖端的繃網技術，極大的提高了篩網的有效面積，具有特高的篩分精度，使產量有了進一步提升。
6.應用范圍廣，是食品、飲料、醫藥、化工、塑料、磨料、陶瓷、造紙、納米材料等行業進行分級、除雜、混料、振實以及過濾、固液分離等的理想設備。

Features
1. The efficient screening efficiency reached the original screen 1.5 ~ 5 times.
2. The machine adopts special high performance of vertical vibration motor, to provide you with surging power, support long uninterrupted work.
3. The body parts contacting with materials are all made of stainless steel plate, sanitation, sterile, corrosion resistance, wear resistance.
4. Convenient cleaning, mesh without blocking, continuous use, and can be repeated in faster, more convenient, only 3 to 5 minutes.
5. The mesh at the top of the screen mesh is used in the industry network technology, greatly improve the effective area of screen mesh, screen with high accuracy, a further increase in production.
6. A wide scope of application, it is food, beverage, medicine, chemical, plastics, abrasives, ceramics, papermaking, nanometer materials and other industries were classified, removing impurity, mixing, compaction and filtration, the ideal equipment of solid-liquid separation, etc.

SDH直線等厚振動篩工作原理

    SDH直線等厚振動篩是由篩箱、法蘭式激振器、隔振系統、傳動系統等組成。篩面由不同傾角的多區段(一般為三段)組成,使篩分物料在各區段呈近似等厚分布,有利于物料在篩面上的輸送、分層和透篩。采用法蘭式激振器,由兩臺電機外拖動作反方向同步運動,使入料端到出料端物料厚度近似相同,各段篩面上物料量與流速比值穩定,料層均衡篩分效率顯著提高,比相同有效面積振動篩處理可提高1-2倍，特別對于中細物料分級效果更為顯著。

Working principles
    SDH linear uniform thickness vibrating screen is composed of screen box, flange vibrator, vibration isolation system, transmission system, etc.Screen surface is composed of several sections of different angle (typically as consisting of three parts), the screening material approximate thickness distribution in different sections, to delivery of materials on the screen surface, layering and through screen.Use flange vibrator, drag movement in the opposite direction by two motor synchronous movement, made into the feeding end to discharging end material thickness approximation, the same paragraphs screen material quantity and stable flow velocity ratio, material layer balanced significantly improve screening efficiency, more effective than the same area of vibrating screen processing can improve the 1-2 times, especially for the fine material classification effect is more significant.

SDH直線等厚振動篩外形尺寸圖表

Parameters



型號	主要尺寸mm
	L	L1	L2	B	B1	B2	H	H1	H2	J	K	M
SDH-2060	6352	4775	817	2450	2700	1200	3665	1275	1723	3050	2700	2450
SDH-2575	7803	5425	1324	2900	2870	1000	3435	1438	1868	3350	2870	2900
SDH-3090	9661	7128	1374	3500	3400	1200	4105	1654	1993	4285	3400	3500

型號	篩面規格(mm×mm)	分級點	振幅 （mm）	振頻 （r/min）	處理量 （t/h）	篩分效率 （%）	功率	篩面傾角(o)
								頭部	中部	尾部
SDH-2060	2000×6000	5	10-15	850	150-200	85	2×15	15	10	5
SDH-2575	2500×7500	5-20	8-10	800	200-500	85	2×30	15	10	5
SDH-3090	3000×9000	5-20	8-10	800	300-800	85	2×45	15	10	5
